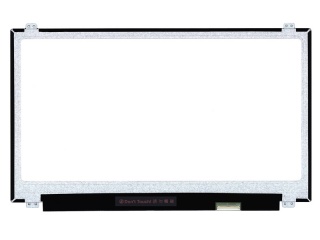

| PartNumber | B156ZAN02.2 |
| Brand | AUO |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 3840×2160 |
| Composition | LTPS TFT-LCD, LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Model | B156ZAN02.2 (AUO22EB) |
| Diagonal Size | 15.6 inch |
| Type | LTPS TFT-LCD, LCM |
| Pixel Format | 3840(RGB)×2160 [UHD] 282PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 345.6(H)×194.4(V) mm |
| Outline Dim. | 358.14(H)×224.4(V) ×3.2(D) mm |
| Bezel Area | - |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
