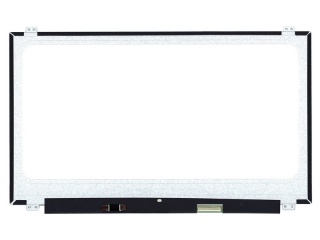

| PartNumber | B173QTN01.0 |
| Brand | AUO |
| Size | 17.3 |
| Application | Laptop |
| Resolution | 2560×1440 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Model | B173QTN01.0 (AUO1096) |
| Diagonal Size | 17.3 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 2560(RGB)×1440 [Quad-HD] 170PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 382.08(H)×214.92(V) mm |
| Outline Dim. | 398.1(H)×252.5(V) ×4.3(D) mm |
| Bezel Area | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 5 (Typ.)(Tr+Tf) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Designed For | Laptop |
| Frame Rate | 120Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes) , eDP1.4 , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
