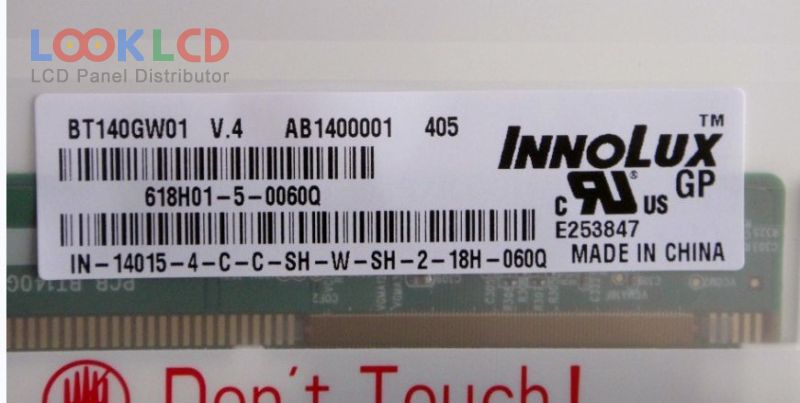

| PartNumber | BT140GW01 V.4 |
| Brand | Innolux |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | BT140GW01 V.4 30 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 309.399×173.952 mm |
| Outline | 323.5×192×5.2 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| BT140GW01 V.0 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.4 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.5 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.A | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.0 | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.2 | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.9 | Innolux | 14.0 | 1366×768 |
| BT140GW03 V.2 | Innolux | 14.0 | 1366×768 |
| LP140WH6-TLB1 | LG Display | 14.0 | 1366×768 |
| LTN140AT04-G01 | Samsung | 14.0 | 1366×768 |
| B140HTN01.1 | AUO | 14.0 | 1920×1080 |
| B154EW08 V0 HW2A | AUO | 15.4 | 1280×800 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| LP121S1 | LG Display | 12.1 | 800×600 |
| LP141WX3-TLB1 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLQ1 | LG Display | 14.1 | 1280×800 |
| LP171WU1-TLA3 | LG Display | 17.1 | 1920×1200 |
| LTD121EDDX | TOSHIBA | 12.1 | 1024×768 |
| LTN121AT07-L02 | Samsung | 12.1 | 1280×800 |
| LTN160AT06-B01 | Samsung | 16.0 | 1366×768 |
