| PartNumber | BT140GW03 V.2 |
| Brand | Innolux |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | BT140GW03 V.2 6 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 309.399×173.952 mm |
| Outline | 320.4×205.1×3.6 mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 9S4PWLEDEmbedded (LED Driver) |

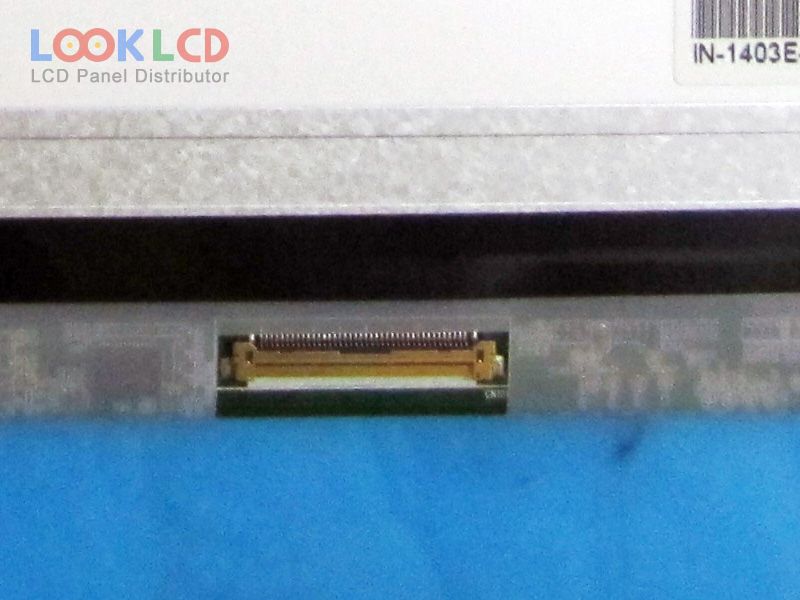

| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| BT140GW01 V.0 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.4 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.5 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.A | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.0 | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.2 | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.9 | Innolux | 14.0 | 1366×768 |
| BT140GW03 V.2 | Innolux | 14.0 | 1366×768 |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| B154EW01 V1 | AUO | 15.4 | 1280×800 |
| B156RW01 V0 | AUO | 15.6 | 1600×900 |
| LP140WH2-TLB1 | LG Display | 14.0 | 1366×768 |
| LP140WHU-TPB2 | LG Display | 14.0 | 1366×768 |
| LP156WF4-SLBA | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLD1 | LG Display | 15.6 | 1366×768 |
| LQ164D1LA4B | SHARP | 16.4 | 1600×900 |
| LTN140AT20-301 | Samsung | 14.0 | 1366×768 |
| LTN184KT01-S02 | Samsung | 18.4 | 1680×945 |
| NL10276BC28-21A | NLT | 14.1 | 1024×768 |
