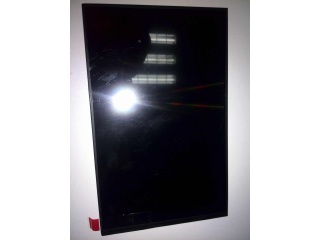

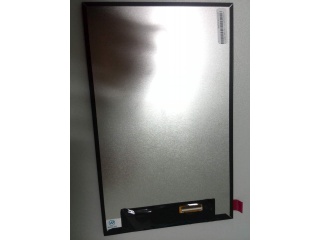

| PartNumber | CLAA080WQ05 XN |
| Brand | CPT |
| Size | 8.0 |
| Application | Pad & Tablet Industr |
| Resolution | 800×1280 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | 3S7P WLED , 15K hours , No Driver |
| Interface | |
| Manufacturer | CPT |
| Screen Size | 8.0 inch |
| Pixel Number | 800(RGB)×1280 (WXGA) 188PPI |
| Active Area(mm) | 107.64 × 172.224 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 350 (Typ.)(cd/m²) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 58% NTSC |
| Mass | 115g (Max.) |
| Refresh Rate | 60Hz |
| Model Name | CLAA080WQ05 XN |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 114.6 × 184.7 × 4.56 (H×V×D) |
| Treatment | Hard coating (3H) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Work Mode | HFFS, Normally Black, Transmissive |
| Response | 30 (Typ.)(Tr+Td) ms |
| Used for | Pad & Tablet Industrial |
| Touchscreen | Without |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA080LA0ACW | CPT | 8.0 | 800×480 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080LG01CW | CPT | 8.0 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| CLAA080WQ08 XN | CPT | 8.0 | 800×1280 |
