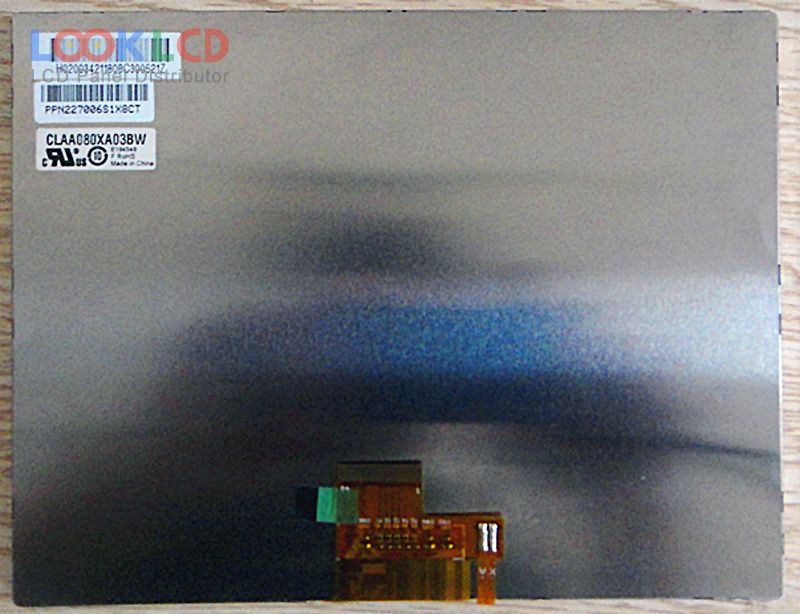

| PartNumber | CLAA080XA03BW |
| Brand | CPT |
| Size | 8.0 |
| Application | DPF |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CPT |
| Panel Model | CLAA080XA03BW |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 162.048×121.536 mm |
| Outline | 183×141×4 mm |
| Surface | Antiglare |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.2M (6-bit + FRC), CIE193150% |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3S11PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Voltage | 3.3/9.6/18.0/-6.0V (Typ.)(VDD/AVDD/VGH/VHL) |
