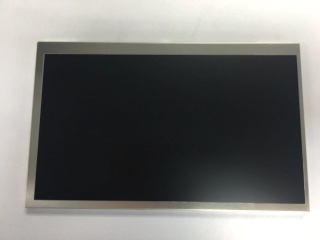

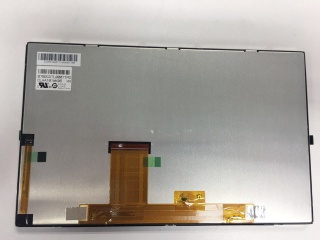

| PartNumber | CLAA101WK06 XN |
| Brand | CPT |
| Size | 10.1 |
| Application | Automotive Display |
| Resolution | 1280(RGB)×720, WXGA, 144PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 600 cd/m² (Typ.) |
| CR | 900:1 |
| Colors | 262K/16.7M |
| Backlight | 6S5P |
| Interface | LVDS |
| Panel Brand | CPT |
| Panel Model | CLAA101WK06 XN |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 224.64(W)×126.36(H) mm |
| Bezel Opening | 227.64(W)×129.36(H) mm |
| Outline Size | 238.8(W)×148.05(H) ×8.7(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | HFFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 70% NTSC |
| Lamp Type | 6S5P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 430g (Typ.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| Input Voltage | 3.3/12.4/24.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
