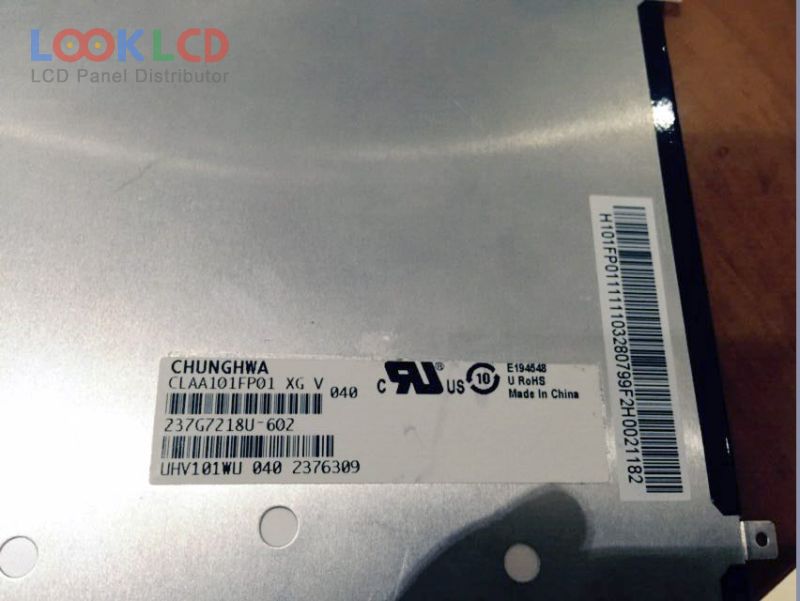

| PartNumber | CLAA101FP01 XG |
| Brand | CPT |
| Size | 10.1 |
| Application | PAD |
| Resolution | 1920(RGB)×1200 , WUXGA |
| Composition | LCM |
| Brightness | 700 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | CPT |
| Panel Model | CLAA101FP01 XG |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.1 inch |
| Display Mode | HFFS, Normally Black, Transmissive |
| Active Area | 216.576×135.36 mm |
| Outline | 229×153×4.8 mm |
| Surface | Glare (Haze 0%), Hard coating, Antireflection |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193150% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | MIPI (4 data lanes), 45 pins |
| Input Voltage | 3.3V (Typ.) |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| CLAA101ND07CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01 | CPT | 10.1 | 1366×768 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA101WH12 LE | CPT | 10.1 | 1280×800 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| HV101HD1-1E2 | HYDIS | 10.1 | 1366×768 |
| LP094WX1-SLA1 | LG Display | 9.4 | 1280×800 |
| LP125WH2-SLB1 | LG Display | 12.5 | 1366×768 |
| LQ070S1DW01 | SHARP | 7.0 | 600×800 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| N080ICE-GB0 Rev.C2 | Innolux | 8.0 | 800×1280 |
| VVX07F023B00 | Panasonic | 7.0 | 1200×1920 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
