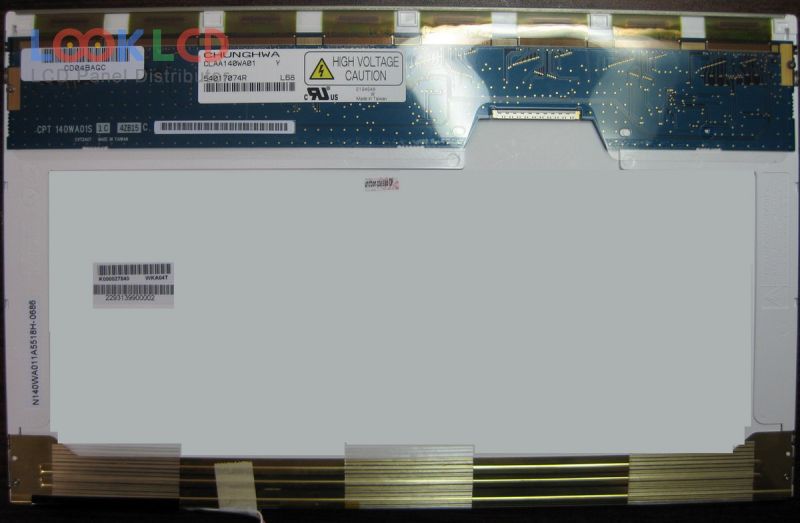

| PartNumber | CLAA140WA01 |
| Brand | CPT |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1280(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 185 cd/m² (Typ.) |
| CR | 350:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | CPT |
| Panel Model | CLAA140WA01 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 305.28×183.168 mm |
| Outline | 320×199×5.7 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 350:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 9/16 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
