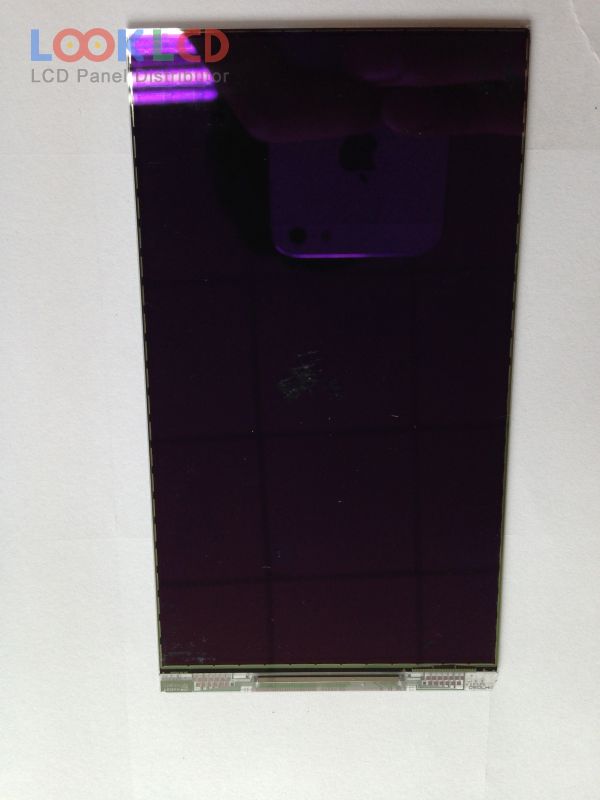

| PartNumber | CLAN050LH21 1XB |
| Brand | CPT |
| Size | 5.0 |
| Application | MPH |
| Resolution | 540(RGB)×960 , qHD |
| Composition | CELL |
| Brightness | 0 |
| CR | 800:1 |
| Colors | |
| Backlight | No B/L |
| Interface | |
| Panel Brand | CPT |
| Panel Model | CLAN050LH21 1XB 1 Compatible model |
| Panel Type | a-Si TFT-LCD , CELL |
| Panel Size | 5.0 inch |
| Display Mode | HFFS, Normally Black, Transmissive |
| Active Area | 61.965×110.16 mm |
| Outline | 64.87×118.31 mm |
| Surface | Hard coating |
| Glass Depth | 0.30+0.30 mm |
| Transmissivity | 5.32% (Typ.)(with APCF) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | , CIE193170% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Driver IC | COG Suggest OTM9605 |
