| PartNumber | COM104T9M10ERS |
| Brand | Ortustech |
| Size | 10.4 |
| Application | Industrial |
| Resolution | 800×600 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | COM104T9M10ERS |
| Diagonal Size | 10.4 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×600 [SVGA] 96PPI |
| Configuration | RGB Vertical Stripe |

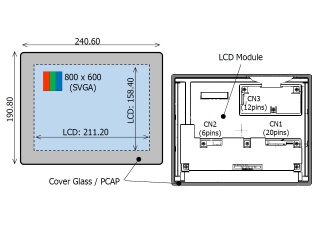

| Active Area | 211.2(H)×158.4(V) mm |
| Outline Dim. | 240(H)×190.8(V) mm |
| Luminance | 480 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 40 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 262K/16.7M 50% NTSC |
| Light Source | WLED , 70K hours , With LED Driver |
| Weight | - |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | PCAP |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| EDTCB29QB0 | Panasonic | 10.4 | 800×600 |
| LP104V2 | LG Display | 10.4 | 640×480 |
| LQ104V1DG5B | SHARP | 10.4 | 640×480 |
| LTA104S1-L01 | Samsung | 10.4 | 800×600 |
| LTD104EDQP | TOSHIBA | 10.4 | 1024×768 |
| LTM10C210 | TOSHIBA | 10.4 | 640×480 |
| LTM10C306Y | TOSHIBA | 10.4 | 1024×768 |
| NL6448AC33-29 | NLT | 10.4 | 640×480 |
| NL8060AC26-05 | NLT | 10.4 | 800×600 |
| TX26D02VM1CAA | KOE | 10.4 | 640×480 |
