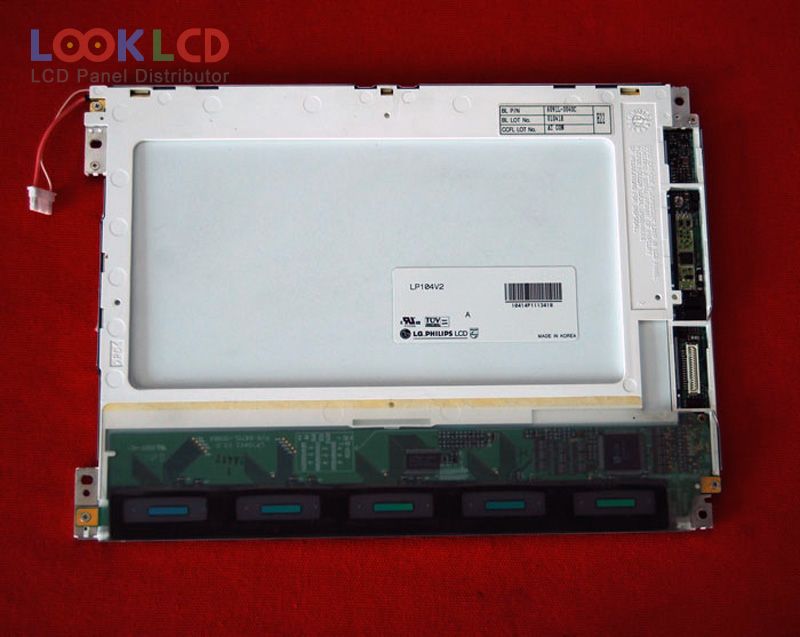

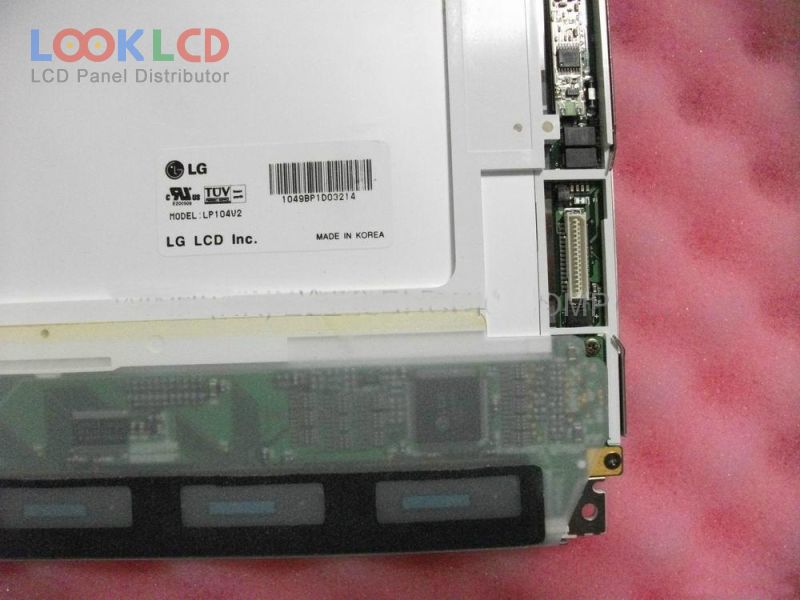

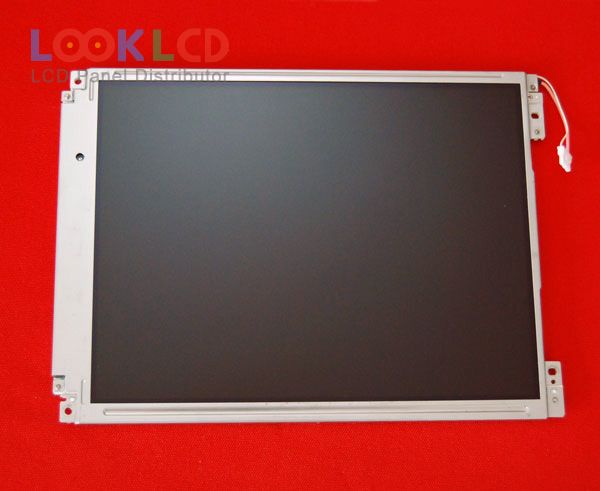

| PartNumber | LP104V2 |
| Brand | LG Display |
| Size | 10.4 |
| Application | NBPC |
| Resolution | 640(RGB)×480 , VGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | |
| Colors | 262K |
| Backlight | CCFL |
| Interface | TTL |
| Panel Brand | LG Semicon |
| Panel Model | LP104V2 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 246.5×179.4 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | |
| Display Colors | 262K (6-bit) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 31 pins |
| Input Voltage | 3.3V (Typ.)(VDD) |
