| PartNumber | COM50H5N15ULC |
| Brand | CASIO |
| Size | 5.0 |
| Application | Industrial Automotive Display |
| Resolution | 800(RGB)×480, WVGA, 186PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 430 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 262K/16.7M |
| Backlight | 5S2P |
| Interface | LVDS |
| Panel Brand | CASIO |
| Panel Model | COM50H5N15ULC |
| Panel Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |

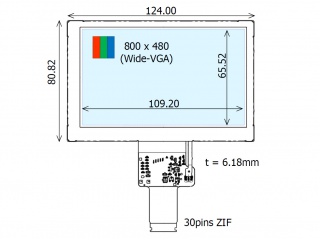

| Display Area | 109.2(W)×65.52(H) mm |
| Bezel Opening | 110.6(W)×66.92(H) mm |
| Outline Size | 124(W)×80.82(H) ×6.53(D) mm |
| Surface | - |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Mode | VA, Normally Black, Transflective |
| Best View on | Symmetry |
| Response Time | 50 (Max.)(Tr+Td) |
| Display Colors | 262K/16.7M 50% NTSC |
| Lamp Type | 5S2P WLED , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
