| PartNumber | COM70H7M24ULC |
| Brand | Ortustech |
| Size | 7.0 |
| Application | Industrial Outdoor H |
| Resolution | 800×480 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 700:13:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | COM70H7M24ULC |
| Diagonal Size | 7.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 133PPI |
| Configuration | RGB Vertical Stripe |

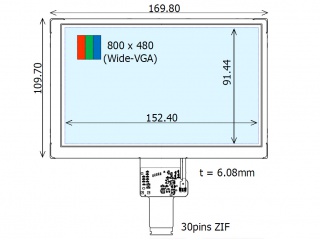

| Active Area | 152.4(H)×91.44(V) mm |
| Outline Dim. | 169.8(H)×109.7(V) ×6.11(D) mm |
| Bezel Area | - |
| Treatment | Hard coating (3H) |
| Luminance | 790 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| View Direction | Symmetry |
| Response Time | 60/40 (Max.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Operating Mode | VA, Normally Black, Transflective |
| Support Color | 262K/16.7M 50% NTSC |
| Light Source | WLED [8S2P] , 100K hours , W/O Driver |
| Weight | 170g (Typ.) |
| Designed For | Industrial Outdoor High Brightness Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 6.8G (66.64 m/s²) |
