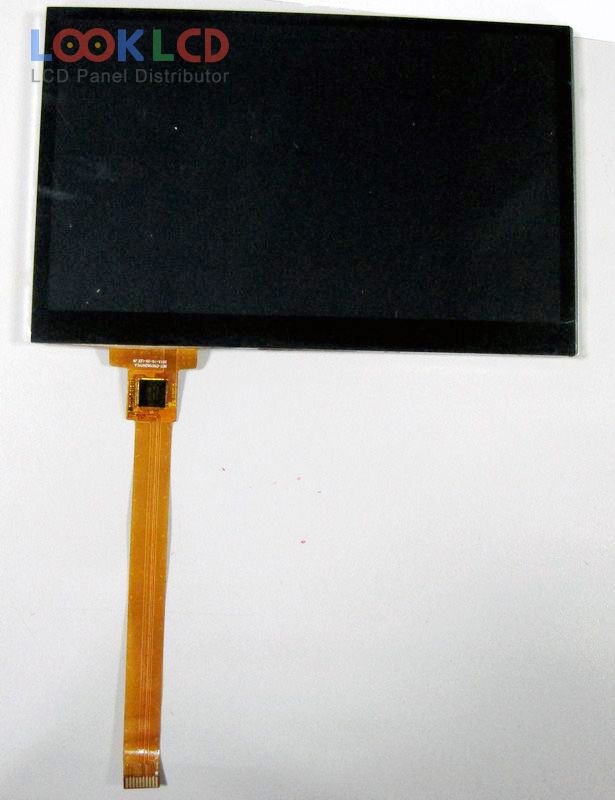

| PartNumber | DLC0700YZG-T-6 |
| Brand | Other |
| Size | 7.0 |
| Application | IA |
| Resolution | 1024(RGB)×600 , WSVGA |
| Composition | LCM |
| Brightness | 210 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | DLC |
| Panel Model | DLC0700YZG-T-6 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 154.21×85.92 mm |
| Outline | 166.8×102.05 mm |
| Surface | |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193152% |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3S7PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 5.0V (Typ.) |
