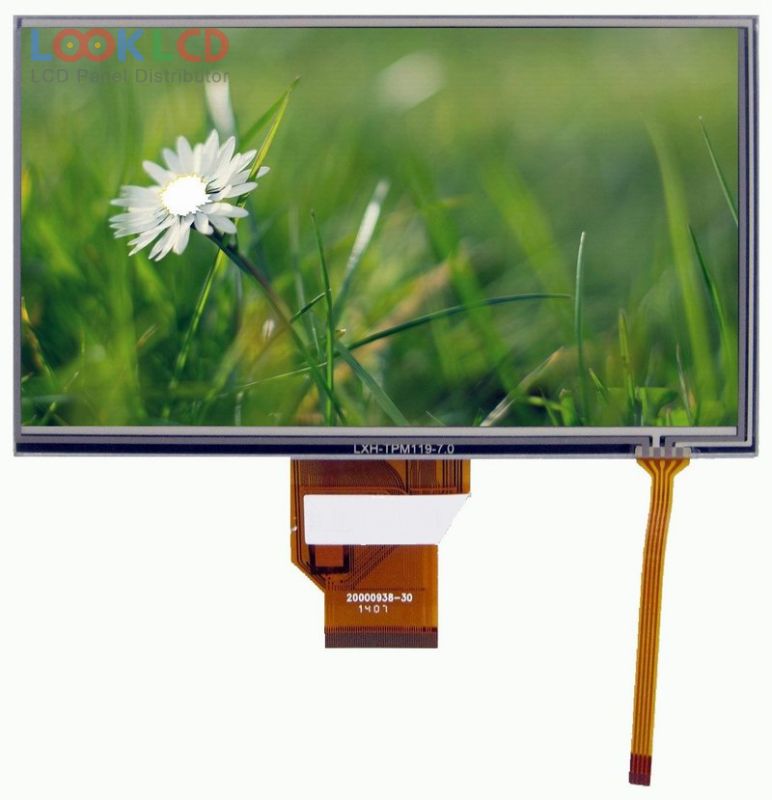

| PartNumber | DLC0700EZG-T-2 |
| Brand | Other |
| Size | 7.0 |
| Application | MP4 |
| Resolution | 800(RGB)×480 , WVGA |
| Composition | LCM |
| Brightness | 320 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K/16.2M |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | DLC |
| Panel Model | DLC0700EZG-T-2 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 154.08×85.92 mm |
| Outline | 164.9×100 mm |
| Surface | |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193149% |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 3S9PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 50 pins |
| Input Voltage | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
