| PartNumber | COM70H7M40ULC |
| Brand | Ortustech |
| Size | 7.0 |
| Application | Industrial Outdoor High Brightness Automotive Display |
| Resolution | 800(RGB)×480, WVGA, 133PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 800 cd/m² (Typ.) |
| CR | 700:13:1 |
| Colors | 262K/16.7M |
| Backlight | 7S2P |
| Interface | |
| Panel Brand | Ortustech |
| Panel Size | 7.0" |
| Display Area | 152.4(W)×91.44(H) mm |

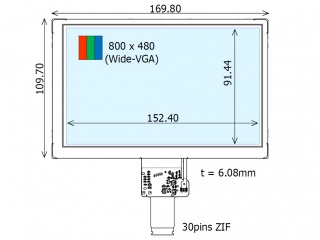

| Outline Size | 169.8(W)×109.7(H) ×6.11(D) mm |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K/16.7M 50% NTSC |
| Frequency | 60Hz |
| Weight | TBD |
| Panel Model | COM70H7M40ULC |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| Display Mode | VA, Normally Black, Transflective |
| Response Time | 50 (Typ.)(Tr+Td) |
| Lamp Type | 7S2P WLED , 50K hours , Without Driver |
| Touch Screen | Without |
