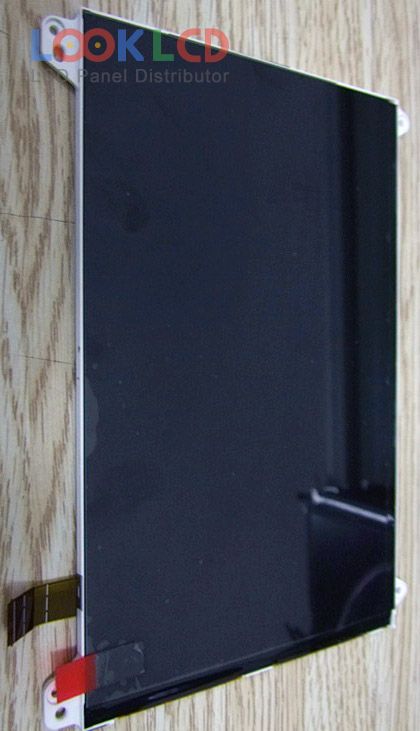

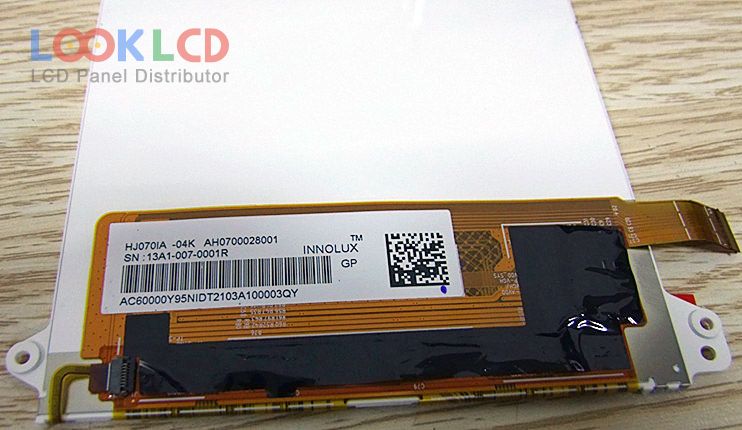

| PartNumber | HJ070IA-04K |
| Brand | Innolux |
| Size | 7.0 |
| Application | PAD |
| Resolution | 800(RGB)×1280 , WXGA |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | HJ070IA-04K |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 94.2×150.72 mm |
| Surface | Antireflection |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193160% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 5S5PWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 45 pins |
| Input Voltage | 3.7V (Typ.) |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| DLC0700YZG-1 | Other | 7.0 | 1024×600 |
| HJ070IA-01I | Innolux | 7.0 | 1024×600 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| HJ070NA-01U | Innolux | 7.0 | 1024×600 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HJ070NA-13D | Innolux | 7.0 | 1024×600 |
| M070SWP1 R5 | IVO | 7.0 | 800×480 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| B080XAT01.1 | AUO | 7.9 | 768×1024 |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| EJ101IA-02A | Innolux | 10.1 | 1280×800 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HV121P01-101 | HYDIS | 12.1 | 1400×1050 |
| LP125WH2-SLT2 | LG Display | 12.5 | 1366×768 |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-001 | Samsung | 10.1 | 1280×800 |
| YX101UWX002C | SEBO | 10.1 | 1280×800 |
