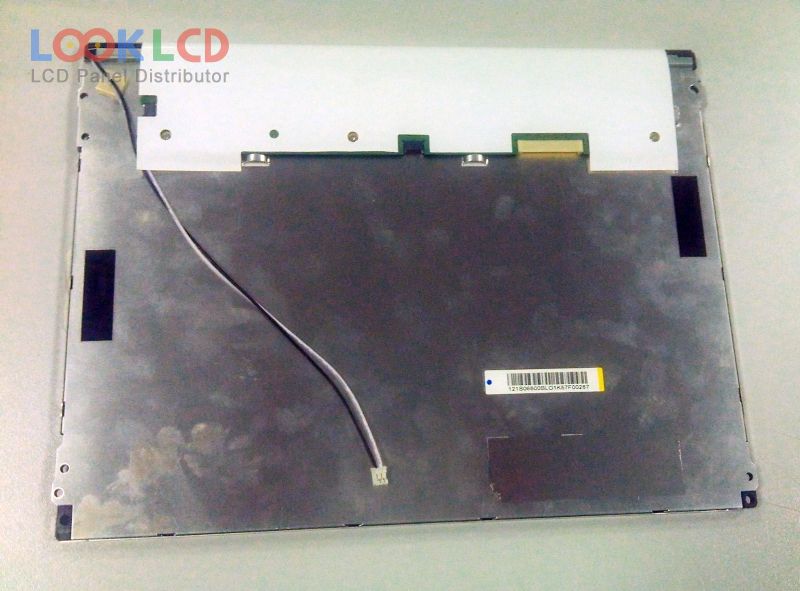

| PartNumber | DLC1210BBG-2 |
| Brand | Other |
| Size | 12.1 |
| Application | IA |
| Resolution | 800(RGB)×600 , SVGA |
| Composition | LCM |
| Brightness | 1000 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K/16.2M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | DLC |
| Panel Model | DLC1210BBG-2 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 246×184.5 mm |
| Outline | 279×209×9.3 mm |
| Surface | |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K/16.2M (6-bit / 6-bit + FRC), CIE193155% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
