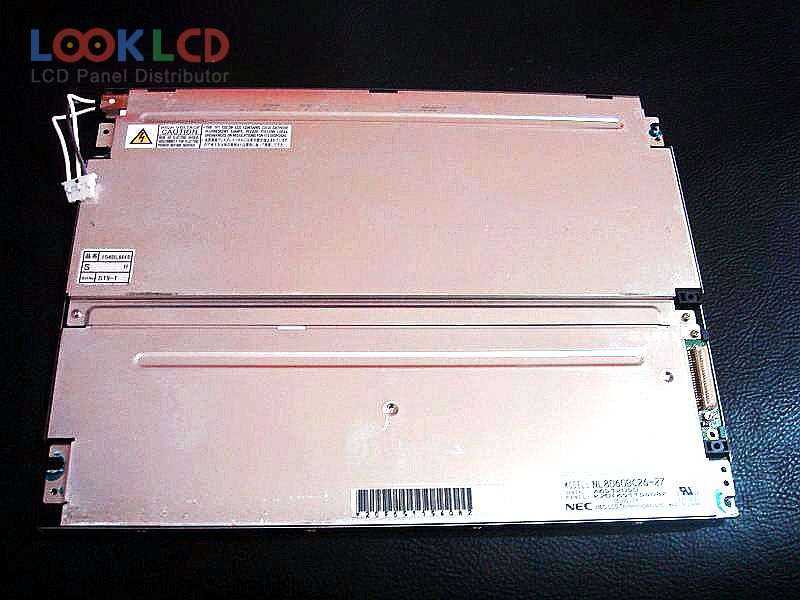

| PartNumber | NL6448BC26-27 |
| Brand | NLT |
| Size | 8.4 |
| Application | IA |
| Resolution | 640(RGB)×480 , VGA |
| Composition | LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | NEC |
| Panel Model | NL6448BC26-27 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 170.88×128.16 mm |
| Outline | 200×152 mm |
| Surface | Clear, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| Response Time | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3 stringsWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
| NL6448AC33-15 | NLT | 10.4 | 640×480 |
| NL6448BC20-08E | NLT | 6.5 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| NL6448BC26-27 | NLT | 8.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| NL6448BC33-59 | NLT | 10.4 | 640×480 |
| NL6448BC33-64D | NLT | 10.4 | 640×480 |
| NL6448BC33-64R | NLT | 10.4 | 640×480 |
| NL6448BC33-71 | NLT | 10.4 | 640×480 |
| EL320.240.36 IN | Lumineq | 5.7 | 320×240 |
| G085VW01 V3 | AUO | 8.5 | 800×480 |
| LB104S01-TL01 | LG Display | 10.4 | 800×600 |
| LQ057Q3DG02 | SHARP | 5.7 | 320×240 |
| LTA149B780F | TOSHIBA | 14.9 | 1280×390 |
| MAA084DXA03 | Mitsubishi | 8.4 | 1024×768 |
| OEL9M0073-G-E | Other | 1.0 | 128×64 |
| TM121SDS01 | Tianma | 12.1 | 800×600 |
| TM24064BBCWVBYD | Tianma | 5.2 | 240×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
