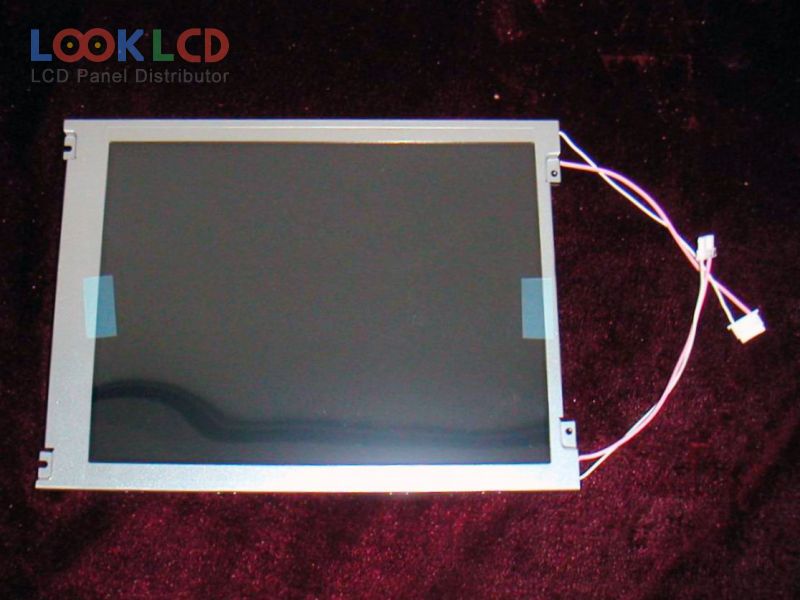

| PartNumber | MAA084DXA03 |
| Brand | Mitsubishi |
| Size | 8.4 |
| Application | IA |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 262K/16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | Mitsubishi MDTI |
| Panel Model | MAA084DXA03 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 171.264×128.448 mm |
| Outline | 205×152.4 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/60/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
| AA084VG01 | Mitsubishi | 8.4 | 640×480 |
| AA084XA03 | Mitsubishi | 8.4 | 1024×768 |
| AA084XB11 | Mitsubishi | 8.4 | 1024×768 |
| G084SN03 V1 | AUO | 8.4 | 800×600 |
| G084SN05 V7 | AUO | 8.4 | 800×600 |
| LQ9D011 | SHARP | 8.4 | 640×480 |
| LTM08C351 | TOSHIBA | 8.4 | 800×600 |
| MAA084DXA03 | Mitsubishi | 8.4 | 1024×768 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| T-51639D084JU-FW-A-AB | Kyocera | 8.4 | 1024×768 |
| CLAA104XA02CW | CPT | 10.4 | 1024×768 |
| G150XTN03.2 | AUO | 15.0 | 1024×768 |
| KCB6448BSTT-X11 | Kyocera | 10.4 | 640×480 |
| LB121S03-TL01 | LG Display | 12.1 | 800×600 |
| LJ089MB2S01 | SHARP | 8.9 | 640×400 |
| LM24P20 | SHARP | 5.7 | 240×128 |
| LQ025Q3DW01 | SHARP | 2.5 | 320×240 |
| LQ104V1DG33 | SHARP | 10.4 | 640×480 |
| LQ121S1DG42 | SHARP | 12.1 | 800×600 |
| UG-2864ASGPG01 | WiseChip | 2.4 | 128×64 |
