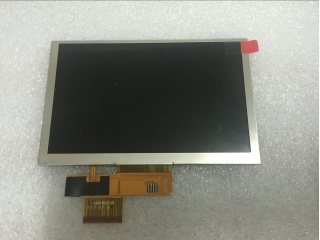

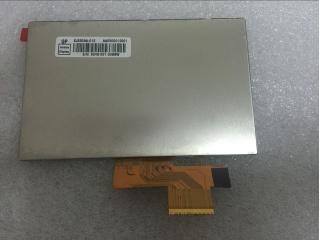

| PartNumber | EJ050NA-01E |
| Brand | Chimei Innolux |
| Size | 5.0 |
| Application | Automotive Display Portable Navigation MP3 PMP |
| Resolution | 800(RGB)×480, WVGA, 188PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | - |
| CR | 500:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | Parallel |
| Panel Brand | Chimei Innolux |
| Panel Model | EJ050NA-01E |
| Panel Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 108(W)×64.8(H) mm |
| Bezel Opening | - |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Display Colors | 16.7M |
| Lamp Type | WLED |
| Frequency | 60Hz |
| Touch Screen | - |
| Panel Weight | - |
| Signal Interface | Parallel RGB (1 ch, 8-bit) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
