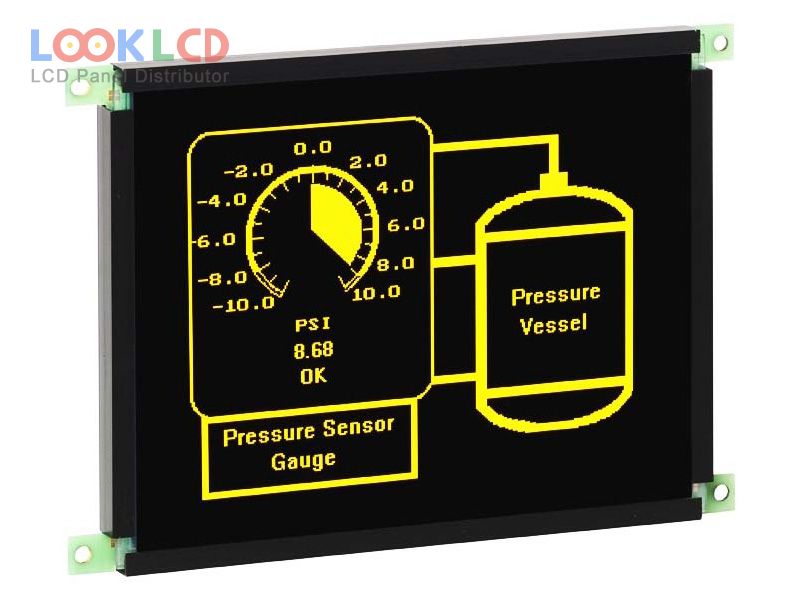

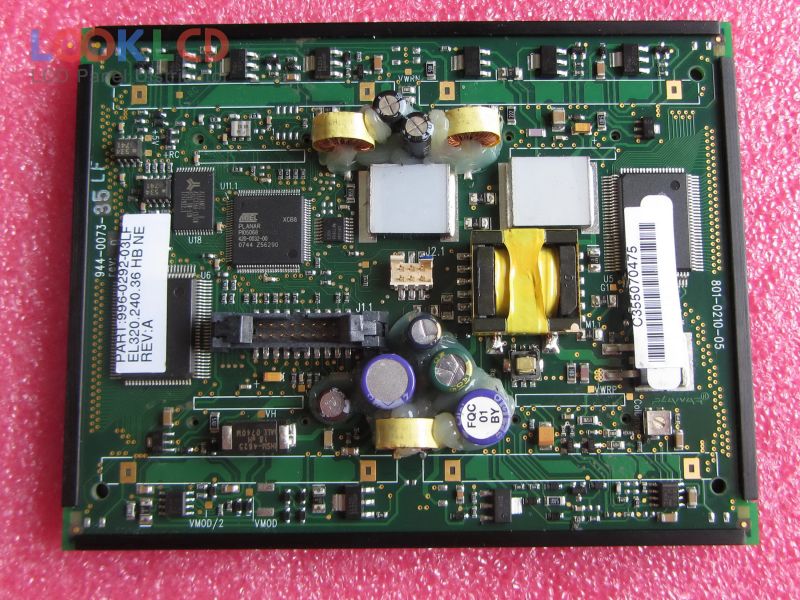

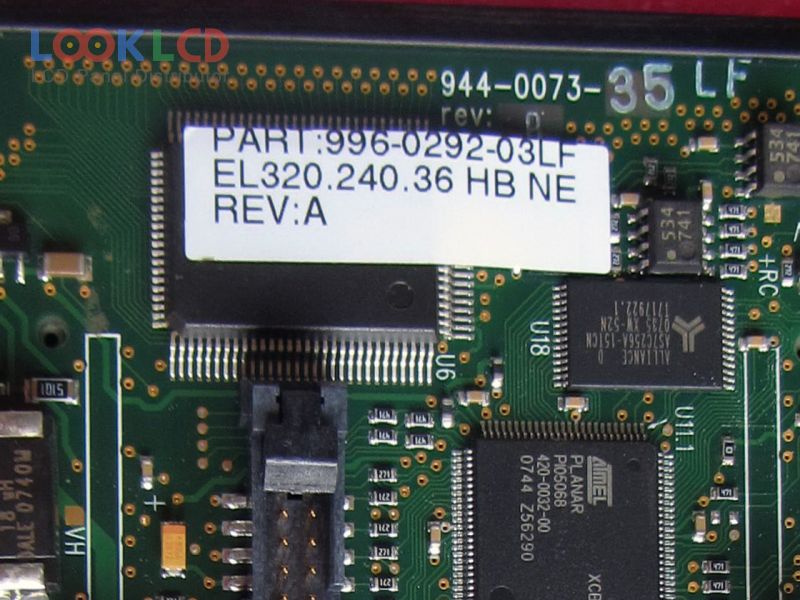

EL320.240.36 HB NE

EL320.240.36 HB NE
EL320.240.36 HB NE
EL320.240.36 HB NE
EL320.240.36 HB NE thumb EL320.240.36 HB NE thumb EL320.240.36 HB NE thumb
Brand
PLANAR
Size
5.7
Application
IA
Resolution
320×240
Composition
EL
Brightness
150
CR
90:1
Colors
Mono(Yellow)
Backlight
self
Interface
Parallel Data
In Stock
300
Specifications
PartNumber EL320.240.36 HB NE
BrandPLANAR
Size5.7
ApplicationIA
Resolution320×240 , QVGA
CompositionEL
Brightness150 cd/m² (Typ.)
CR90:1
ColorsMono(Yellow)
Backlightself
InterfaceParallel Data
Panel BrandPLANAR
Panel ModelEL320.240.36 HB NE
Panel Type EL , EL
Panel Size5.7 inch
Active Area115.1×86.3 mm
Outline148.1×104.7 mm
Surface
Contrast Ratio90 : 1 (Typ.)
Display ColorsMono(Yellow) (1-bit)
Viewing Angle89/89/89/89 (Typ.)(L/R/U/D)
Frequency120Hz
Signal InterfaceParallel Data (1ch, 4-bit), 26 pins
Input Voltage5/12V (Typ.)(VL/VH)
Family Model
EL320.240-FA3 Lumineq 4.9 320×240
EL320.240-FA3 CC Lumineq 4.9 320×240
EL320.240.36 ET Lumineq 5.7 320×240
EL320.240.36 ET CC Lumineq 5.7 320×240
EL320.240.36 HB Lumineq 5.7 320×240
EL320.240.36 HB CCB Lumineq 5.7 320×240
EL320.240.36 HB NE PLANAR 5.7 320×240
EL320.240.36 HB NE CC PLANAR 5.7 320×240
EL320.240.36 HB SE PLANAR 5.7 320×240
EL320.240.36 IN Lumineq 5.7 320×240
