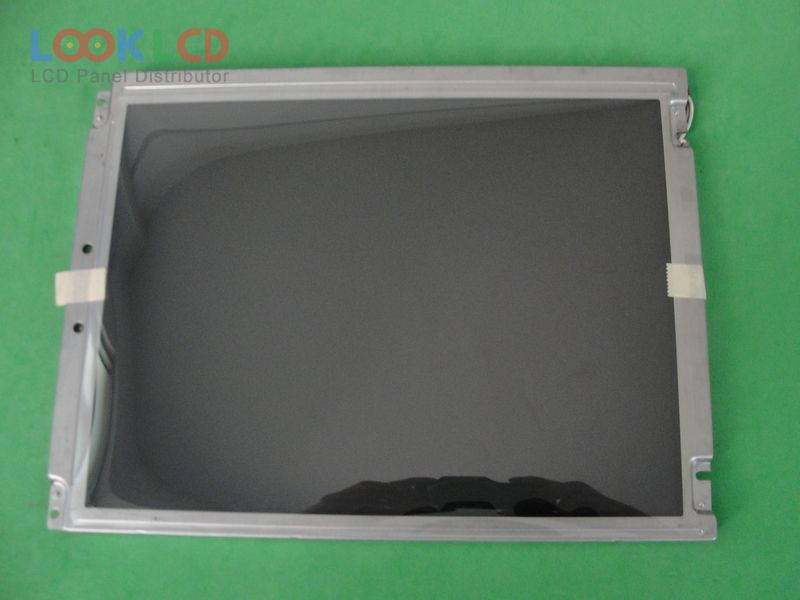

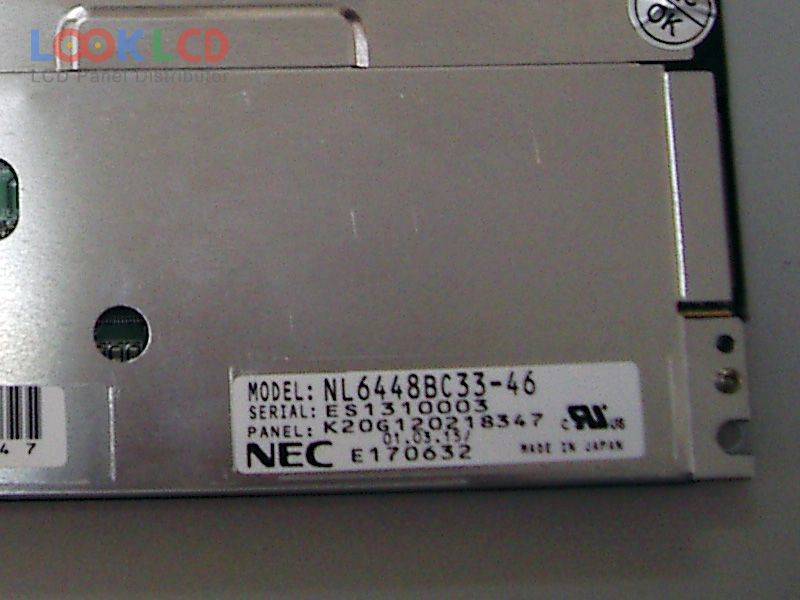

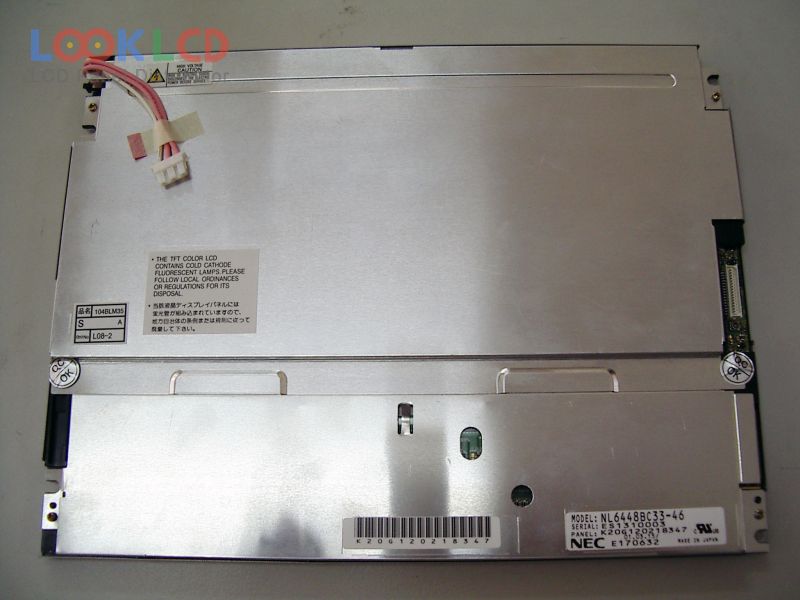

| PartNumber | NL6448BC33-46 |
| Brand | NLT |
| Size | 10.4 |
| Application | IA |
| Resolution | 640(RGB)×480 , VGA |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | TTL |
| Panel Brand | NEC |
| Panel Model | NL6448BC33-46 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 243×185.1×11.5 mm |
| Surface | Clear, Hard coating (3H) |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193143% |
| Response Time | 6/40 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcsCCFLWithout Driver |
| Signal Interface | CMOS (1 ch, 6-bit), 31 pins |
| Input Voltage | 3.3/5.0V (Typ.)(VCC) |
| NL6448AC20-06 | NLT | 6.5 | 640×480 |
| NL6448AC33-15 | NLT | 10.4 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| NL6448BC20-20 | NLT | 6.5 | 640×480 |
| NL6448BC26-25 | NLT | 8.4 | 640×480 |
| NL6448BC28-01 | NLT | 9.0 | 640×480 |
| NL6448BC33-46 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| NL6448BC33-64D | NLT | 10.4 | 640×480 |
| NL6448BC33-64E | NLT | 10.4 | 640×480 |
| G150XG01 V4 | AUO | 15.0 | 1024×768 |
| LQ104V1DC31 | SHARP | 10.4 | 640×480 |
| LQ121S1DG21A | SHARP | 12.1 | 800×600 |
| LTB190E3-L01 | Samsung | 19.0 | 1280×1024 |
| LTM121SI-T01 | Samsung | 12.1 | 800×600 |
| M121GNX2 R1 | IVO | 12.1 | 1024×768 |
| MD480T640PG3 | Panasonic | 11.3 | 640×480 |
| OEL9M0073-R-E | Other | 1.0 | 128×64 |
| TM150XG-A02-01 | SANYO | 15.0 | 1024×768 |
| TX26D202VM0BAA | KOE | 10.1 | 1920×1200 |
