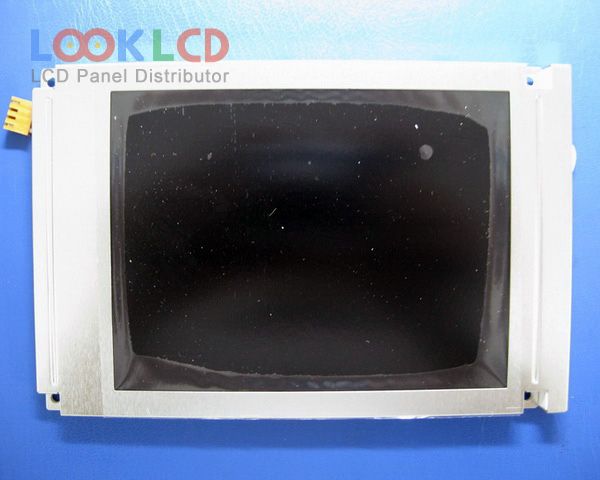

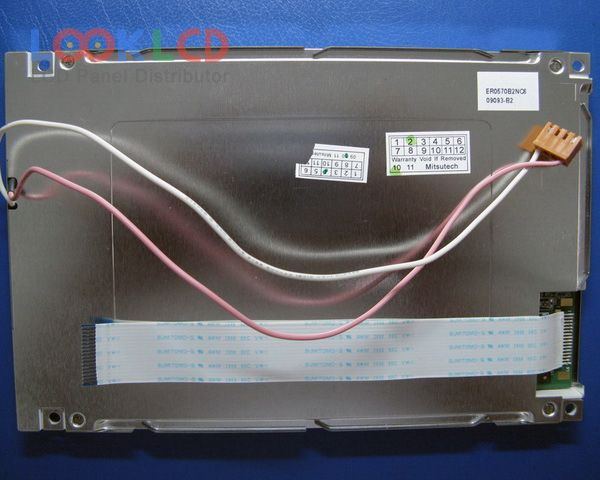

| PartNumber | ER0570B2NC6 |
| Brand | EDT |
| Size | 5.7 |
| Application | IA |
| Resolution | 320(RGB)×240 , QVGA |
| Composition | LCM |
| Brightness | 150 cd/m² (Typ.) |
| CR | 50:1 |
| Colors | Color |
| Backlight | CCFL |
| Interface | Parallel Data |
| Panel Brand | EDT |
| Panel Model | ER0570B2NC6 |
| Panel Type | CSTN-LCD , LCM |
| Panel Size | 5.7 inch |
| Display Mode | STN, Normally Black, Transmissive |
| Active Area | 115.17×86.37 mm |
| Outline | 167×109×9.4 mm |
| Surface | |
| Contrast Ratio | 50:1 (Typ.) |
| Display Colors | Color |
| Response Time | 350/250 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/20/40 (Min.)(CR≥2)(L/R/U/D) |
| Frequency | 120Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel Data (8-bit), 16 pins |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
