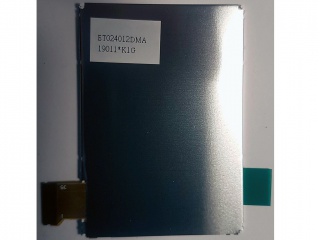

| PartNumber | ET024012DMA |
| Brand | EDT |
| Size | 2.4 |
| Application | Handheld & PDA |
| Resolution | 240×320 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 820:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | 8/9/16/18-bit |
| Model | ET024012DMA |
| Diagonal Size | 2.4 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 240(RGB)×320 [QVGA] 166PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 36.72(H)×48.96(V) mm |
| Outline Dim. | 42.72(H)×60.4(V) mm |
| Bezel Area | 37.72(H)×49.96(V) mm |
| Treatment | - |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 820:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/70/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 59% NTSC |
| Light Source | WLED [4S1P] , 10K hours , W/O Driver |
| Weight | - |
| Designed For | Handheld & PDA |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | 8/9/16/18-bit 8080 parallel , 35 pins FPC |
| Power Supply | 3.0/3.0V (Typ.)(VCI/IOVCC) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
