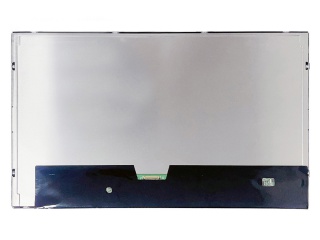

| PartNumber | EV156FHM-N10-5850 |
| Brand | BOE |
| Size | 15.6 |
| Application | Industrial |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Model | EV156FHM-N10-5850 |
| Diagonal Size | 15.6 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.16(H)×193.59(V) mm |
| Outline Dim. | 363.8(H)×215.9(V) ×9.9(D) mm |
| Bezel Area | 348.2(H)×197.6(V) mm |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 45% NTSC |
| Light Source | WLED [8S4P] , 50K hours , With LED Driver |
| Weight | 850g (Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Operating Temperature: 0 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C |
