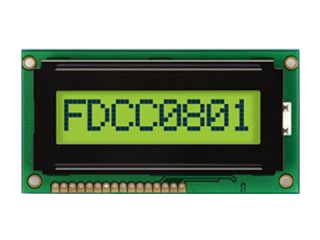

| PartNumber | FC0801A01-FHYYBW-51SK |
| Brand | Fordata |
| Size | 2.3 |
| Application | Instruments & Me |
| Resolution | 5×8 |
| Composition | STN-LCD, LCM |
| Brightness | |
| CR | 10:1 |
| Colors | Monochrome |
| Backlight | YG-LED |
| Interface | 8-bit |
| Model | FC0801A01-FHYYBW-51SK |
| Diagonal Size | 2.3 inch |
| Type | STN-LCD, LCM |
| Char Format | 5×8 dots |
| Font Size | 6.45×10.75 mm |
| Font Pitch | 7.15×10.75 mm |
| Active Area | 56.5(H)×10.75(V) mm |
| Outline Dim. | 84(H)×44(V) ×13.5(D) mm |
| Bezel Area | 61.0(H)×15.8(V) mm |
| Treatment | - |
| Luminance | - |
| Contrast Ratio | 10:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 150/150 (Typ.)(Tr/Tf) |
| Viewing Angle | - |
| Operating Mode | STN, Yellow/Green (Positive), Transflective |
| Support Color | Monochrome |
| Light Source | YG-LED , 20K hours , W/O Driver |
| Weight | - |
| Designed For | Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | 8-bit parallel , 16 pins Pad |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
