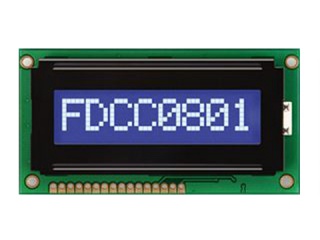

| PartNumber | FC0801A04-NSWBBW-91LE |
| Brand | Fordata |
| Size | 2.3 |
| Application | Instruments & Meters |
| Resolution | 8×13 |
| Composition | STN-LCD , LCM |
| Brightness | - |
| CR | 10:1 |
| Colors | Monochrome |
| Backlight | WLED |
| Interface | |
| Panel Brand | Fordata |
| Panel Size | 2.3" |
| Display Format | 8 characters × 1 lines, 3PPI |
| Character Size | 6.45×10.75(W×H) mm |
| Display Area | 56.5(W)×10.75(H) mm |
| Outline Size | 84(W)×44(H) ×13.5(D) mm |
| Viewing Angle | - |
| Best View on | 6 o'clock |
| Display Colors | Monochrome |
| Frequency | - |
| Weight | - |
| Panel Model | FC0801A04-NSWBBW-91LE |
| Panel Type | STN-LCD , LCM |
| Font Format | 5×8 dots |
| Character Pitch | 7.15×10.75(W×H) mm |
| Bezel Opening | 61.0(W)×15.8(H) mm |
| Surface | - |
| Contrast Ratio | 10:1 (Typ.) (TM) |
| Display Mode | STN, Blue mode (Negative), Transmissive |
| Response Time | 150/150 (Typ.)(Tr/Tf) |
| Lamp Type | WLED , 9K hours , Without Driver |
| Touch Screen | Without |
