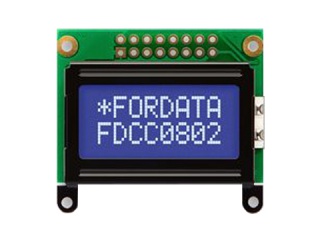

| PartNumber | FC0802C00-NSWBBH-91LE |
| Brand | Fordata |
| Size | 1.1 |
| Application | Instruments & Me |
| Resolution | 5×8 |
| Composition | LCM, STN-LCD |
| Brightness | |
| CR | 10:1 |
| Colors | Monochrome |
| Backlight | WLED , 9K hours , No Driver |
| Interface | |
| Manufacturer | Fordata |
| Model Name | FC0802C00-NSWBBH-91LE |
| Screen Size | 1.1 inch |
| Screen Type | LCM, STN-LCD |
| Char Number | 8 characters × 2 lines 7PPI |
| Char Format | 5×8 dots |
| Char Pitch(mm) | 3.35×5.15 (H×V) |
| Char Size(mm) | 2.95×4.75 (H×V) |
| Active Area(mm) | 26.4 × 9.9 (H×V) |
| Outline(mm) | 40 × 35.4 × 13 (H×V×D) |
| Bezel Area(mm) | 30.4 × 13.9 (H×V) |
| Treatment | - |
| Luminance | - |
| Contrast Ratio | 10 : 1 (Typ.) (TM) |
| Viewing Angle | - |
| Response | 150/150 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | STN, Blue mode (Negative), Transmissive |
| Color Depth | Monochrome |
| Mass | - |
| Used for | Instruments & Meters |
| Refresh Rate | - |
| Touchscreen | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
