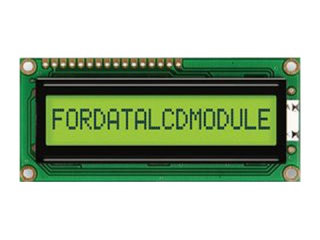

| PartNumber | FC1601E01-FHYYBW-51LR |
| Brand | Fordata |
| Size | 2.4 |
| Application | Instruments & Meters |
| Resolution | 5×8 |
| Composition | STN-LCD , LCM |
| Brightness | |
| CR | 10:1 |
| Colors | Monochrome |
| Backlight | YG-LED |
| Interface | 8-bit |
| Diagonal Size | 2.4 inch |
| Char Format | 5×8 dots |
| Font Size | 3.07×6.56 mm |
| Active Area | 59.62(H)×6.56(V) mm |
| Bezel Area | 64.5(H)×13.8(V) mm |
| Luminance | - |
| View Direction | 6 o'clock |
| Viewing Angle | - |
| Support Color | Monochrome |
| Weight | - |
| Frame Rate | - |
| Interface Type | 8-bit parallel , 16 pins Pad |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Model | FC1601E01-FHYYBW-51LR |
| Type | STN-LCD , LCM |
| Font Pitch | 3.77×6.56 mm |
| Outline Dim. | 80(H)×36(V) ×13.5(D) mm |
| Treatment | - |
| Contrast Ratio | 10:1 (Typ.) (TM) |
| Response Time | 150/150 (Typ.)(Tr/Td) |
| Operating Mode | STN, Yellow/Green (Positive), Transflective |
| Light Source | YG-LED , 20K hours , W/O Driver |
| Designed For | Instruments & Meters |
| Touch Panel | Without |
