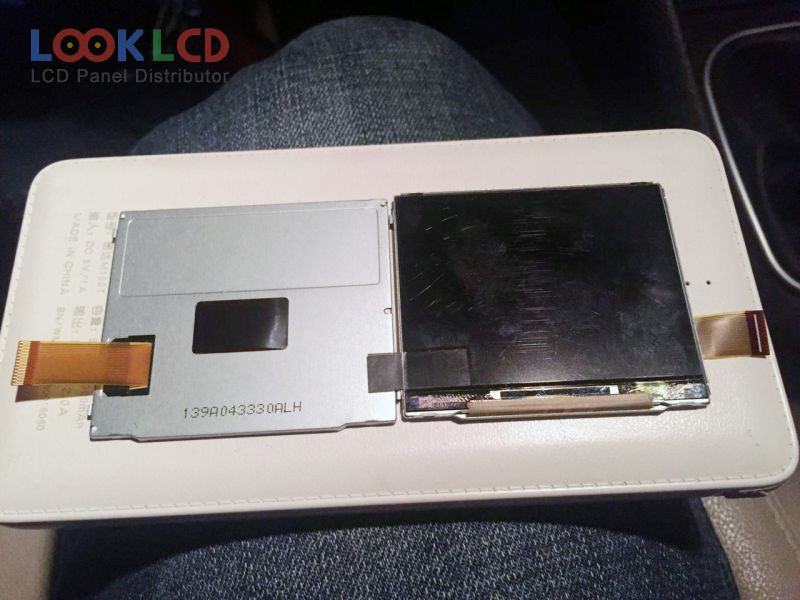

| PartNumber | LS024Q3UX12(G) |
| Brand | SHARP |
| Size | 2.4 |
| Application | HHP |
| Resolution | 320(RGB)×240 , QVGA |
| Composition | LCM |
| Brightness | |
| CR | |
| Colors | 262K |
| Backlight | WLED |
| Interface | CPU |
| Panel Brand | SHARP |
| Panel Model | LS024Q3UX12(G) |
| Panel Type | CG-Silicon , LCM |
| Panel Size | 2.4 inch |
| Display Mode | Normally Black, Transmissive |
| Active Area | 48.96×36.72 mm |
| Outline | 54.3×46.8 mm |
| Surface | |
| Contrast Ratio | |
| Display Colors | 262K |
| Response Time | |
| Viewing Angle | |
| Frequency | 65Hz |
| Lamp Type | 1S5PWLEDWithout Driver |
| Signal Interface | CPU, 27 pins |
| Input Voltage | 2.85/2.85V (Typ.)(VDDIO/VDC) |
