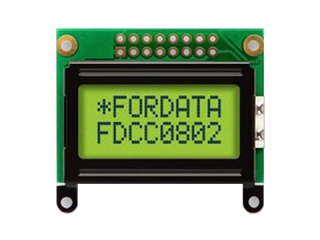

| PartNumber | FDCC0802C-FLYYBW-51LK |
| Brand | Fordata |
| Size | 1.1 |
| Application | Instruments & Me |
| Resolution | 5×8 |
| Composition | STN-LCD, LCM |
| Brightness | |
| CR | 6:1 |
| Colors | Monochrome |
| Backlight | YG-LED |
| Interface | 8-bit |
| Model | FDCC0802C-FLYYBW-51LK |
| Diagonal Size | 1.1 inch |
| Type | STN-LCD, LCM |
| Char Format | 5×8 dots |
| Font Size | 2.95×4.75 mm |
| Font Pitch | 3.35×5.15 mm |
| Active Area | 26.4(H)×9.9(V) mm |
| Outline Dim. | 40(H)×35.4(V) ×13(D) mm |
| Bezel Area | 30.4(H)×13.9(V) mm |
| Treatment | - |
| Luminance | - |
| Contrast Ratio | 6:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 150/150 (Typ.)(Tr/Td) |
| Viewing Angle | - |
| Operating Mode | STN, Yellow/Green (Positive), Transflective |
| Support Color | Monochrome |
| Light Source | YG-LED , 9K hours , W/O Driver |
| Weight | - |
| Designed For | Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | 8-bit parallel , 16 pins Pad |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
