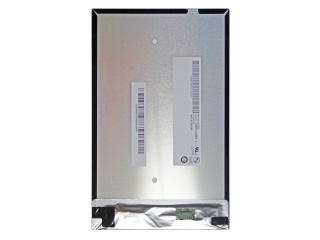

| PartNumber | G080UAN01.1 |
| Brand | AUO |
| Size | 8.0 |
| Application | Industrial |
| Resolution | 1200(RGB)×1920, WUXGA, 283PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | - |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | AUO |
| Panel Model | G080UAN01.1 |
| Panel Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 107.64(W)×172.224(H) mm |
| Bezel Opening | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 27 (Typ.)(Tr+Tf) |
| Display Colors | 16.7M |
| Lamp Type | WLED , 15K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Signal Interface | MIPI |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| AT080TN43 | Innolux | 8.0 | 800×600 |
| B080EAN02.0 | AUO | 8.0 | 800×1280 |
| HJ080IA-01E | Innolux | 8.0 | 1024×768 |
| LA080WV2-TD01 | LG Display | 8.0 | 800×480 |
| LD080UX1-SMA2 | LG Display | 8.0 | 1200×1600 |
| LQ080Y5DW03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW30 | SHARP | 8.0 | 800×480 |
| LS080HT111 | Innolux | 8.0 | 800×600 |
| PD080SL5 | E Ink | 8.0 | 800×600 |
| TM080SDH01 | Tianma | 8.0 | 800×600 |
