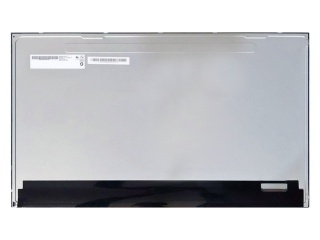

| PartNumber | G215HAN01.201 |
| Brand | AUO |
| Size | 21.5 |
| Application | Industrial Medical Imaging |
| Resolution | 1920(RGB)×1080, FHD, 102PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 12S4P |
| Interface | LVDS |
| Panel Brand | AUO |
| Panel Model | G215HAN01.201 |
| Panel Size | 21.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 476.064(W)×267.786(H) mm |
| Bezel Opening | 479.8(W)×271.3(H) mm |
| Outline Size | 497.6(W)×292.2(H) ×11(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 12/10 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 99% sRGB |
| Lamp Type | 12S4P WLED , 50K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.74Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| CLAA215FA04 | CPT | 21.5 | 1920×1080 |
| HM215WU3-100 | BOE | 21.5 | 1920×1080 |
| HM215WU3-101 | BOE | 21.5 | 1920×1080 |
| LC215EUE-TEA1 | LG Display | 21.5 | 1920×1080 |
| LM215DB-T02 | PANDA | 21.5 | 1920×1080 |
| LM215WF2-SLD1 | LG Display | 21.5 | 1920×1080 |
| LM215WF3-SLC1 | LG Display | 21.5 | 1920×1080 |
| LM215WF4-TLE1 | LG Display | 21.5 | 1920×1080 |
| LM215WF4-TRA1 | LG Display | 21.5 | 1920×1080 |
| M215HGE-P02 | Innolux | 21.5 | 1920×1080 |
