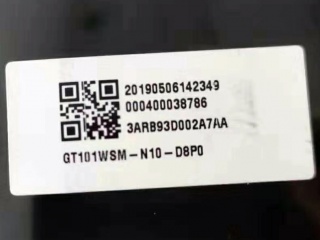

| PartNumber | GT101WSM-N10 |
| Brand | BOE |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1024(RGB)×600, WSVGA, 117PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K/16.7M |
| Backlight | 4 |
| Interface | |
| Panel Brand | BOE |
| Panel Size | 10.1" |
| Display Area | 222.72(W)×125.28(H) mm |
| Outline Size | 235(W)×143(H) mm |
| Viewing Angle | 70/70/0/60 (Typ.)(CR≥10) |
| Best View on | - |
| Display Colors | 262K/16.7M 50% NTSC |
| Frequency | 60Hz |
| Weight | 180g (Typ.) |
| Panel Model | GT101WSM-N10 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 225.92(W)×128.48(H) mm |
| Surface | - |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 20 (Typ.)(Tr+Td) |
| Lamp Type | 4 strings WLED , With LED Driver |
| Touch Screen | Without |
