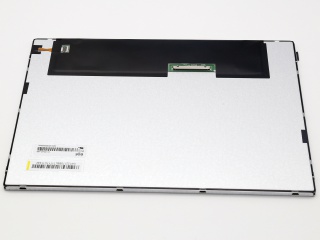

| PartNumber | GV122WXM-N80 |
| Brand | BOE |
| Size | 12.2 |
| Application | Industrial |
| Resolution | 1280×800 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED , With LED Driver |
| Interface | LVDS |
| Manufacturer | BOE |
| Model Name | GV122WXM-N80 |
| Screen Size | 12.2 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 123PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 262.656 × 164.16 (H×V) |
| Outline(mm) | 278 × 184 × 9.91 (H×V×D) |
| Bezel Area(mm) | 264.66 × 166.66 (H×V) |
| Treatment | - |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td); 45 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Mass | 564g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
