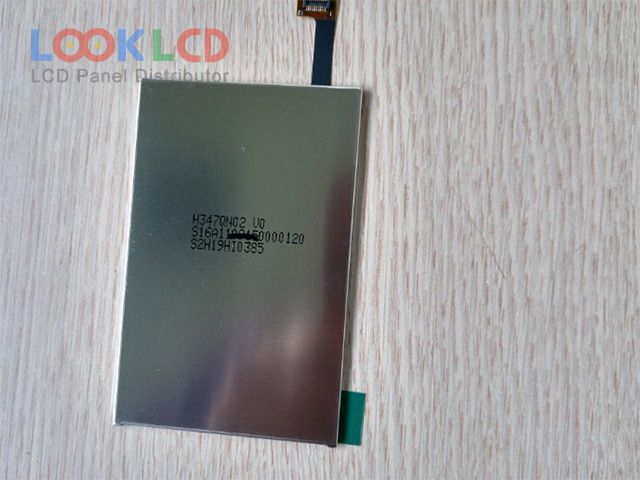

| PartNumber | H347QN02 V0 |
| Brand | AUO |
| Size | 3.5 |
| Application | MPH |
| Resolution | 320(RGB)×480 , HVGA |
| Composition | LCM |
| Brightness | 550 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MDDI |
| Panel Brand | AUO |
| Panel Model | H347QN02 V0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 3.5 inch |
| Display Mode | MVA, Normally Black, Transmissive |
| Active Area | 48.96×73.44 mm |
| Outline | 52.8×82.8×1.6 mm |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193170% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 7S1PWLEDWithout Driver |
| Signal Interface | MDDI, 24 pins |
| Input Voltage | 1.8/2.8V (Typ.)(VCC/VCI) |
