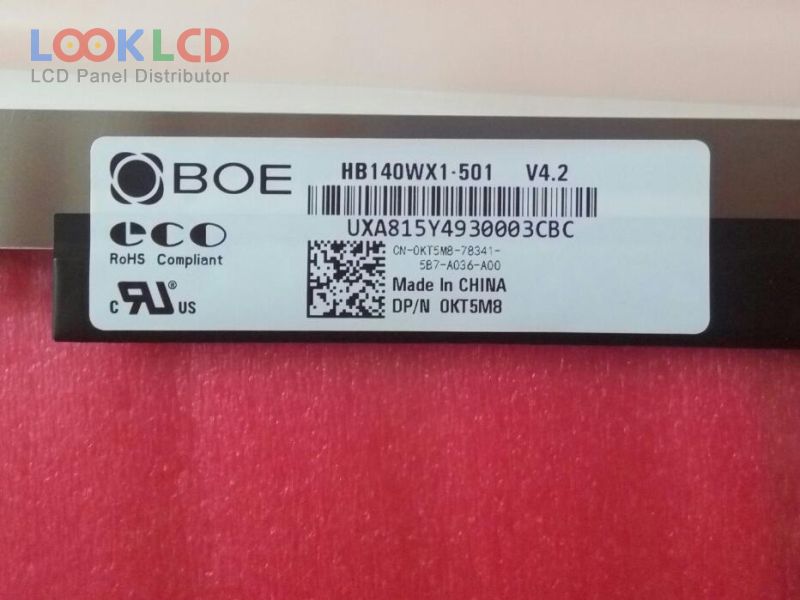

| PartNumber | HB140WX1-501 |
| Brand | BOE |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | BOE |
| Panel Model | HB140WX1-501 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 309.399×173.952 mm |
| Outline | 320.9×187.6×3 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Hard coating (3H) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 12 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 9S4PWLEDEmbedded (LED Driver) |
| Signal Interface | eDP (1 Lane), 30 pins |
| Input Voltage | 3.3V (Typ.) |
