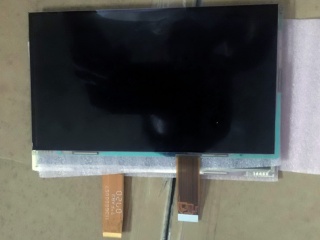

| PartNumber | HSD070I651-D00-0299 |
| Brand | HannStar |
| Size | 7.0 |
| Application | Digital Photo Frame |
| Resolution | 480×234 |
| Composition | CELL, a-Si TFT-LCD |
| Brightness | |
| CR | 500:1 |
| Colors | Full |
| Backlight | No B/L |
| Interface | |
| Manufacturer | HannStar |
| Model Name | HSD070I651-D00-0299 |
| Screen Size | 7.0 inch |
| Screen Type | CELL, a-Si TFT-LCD |
| Pixel Number | 480(RGB)×234 76PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 154.08 × 86.58 (H×V) |
| Outline(mm) | 164.9 × 100 × 1.69 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) |
| Response | 5/20 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.63+0.63 mm |
| Transmissivity | 9.0% (Typ.)(with Polarizer) |
| Color Depth | Full color |
| Mass | 55.3/58.3g (Typ./Max.) |
| Used for | Digital Photo Frame Portable DVD Player |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
