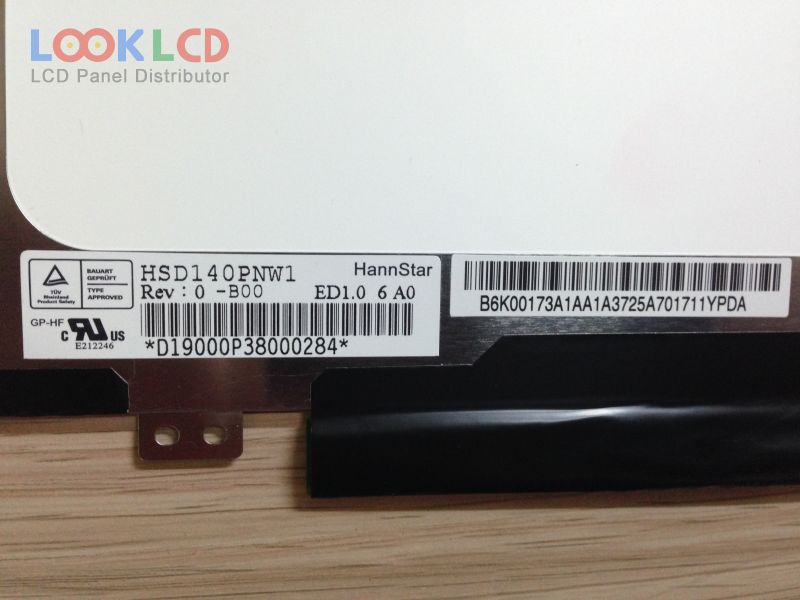

| PartNumber | HSD140PNW1-B00 |
| Brand | HannStar |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1600(RGB)×900 , HD+ |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | HannStar |
| Panel Model | HSD140PNW1-B00 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 309.6×174.15 mm |
| Outline | 320.4×205.1×3 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193160% |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Voltage | 3.3V (Typ.) |
