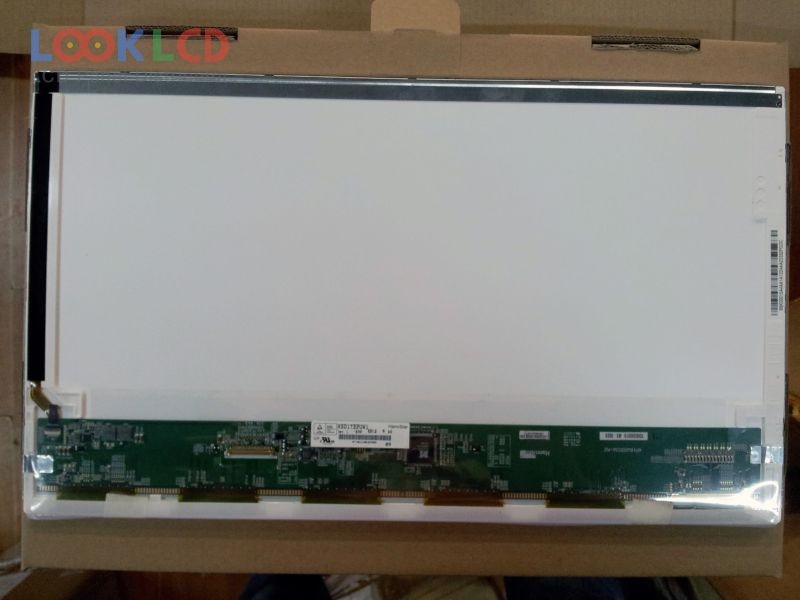

| PartNumber | HSD173PUW1-A |
| Brand | HannStar |
| Size | 17.3 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | HannStar |
| Panel Model | HSD173PUW1-A 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 17.3 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 381.888×214.812 mm |
| Outline | 398.1×232.8×5.8 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 2.4/5.6 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/60/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| B125HAN01.0 | AUO | 12.5 | 1920×1080 |
| HSD140PNW1-B00 | HannStar | 14.0 | 1600×900 |
| LP141WX3-TLN1 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLR1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLN1 | LG Display | 14.1 | 1280×800 |
| LP171WX2-TLB2 | LG Display | 17.1 | 1440×900 |
| LTD104EA5S | TOSHIBA | 10.4 | 1024×768 |
| LTN141W1-L09 | Samsung | 14.1 | 1280×800 |
| LTN173HT02-C01 | Samsung | 17.3 | 1920×1080 |
| N140FGE-EA2 | Innolux | 14.0 | 1600×900 |
