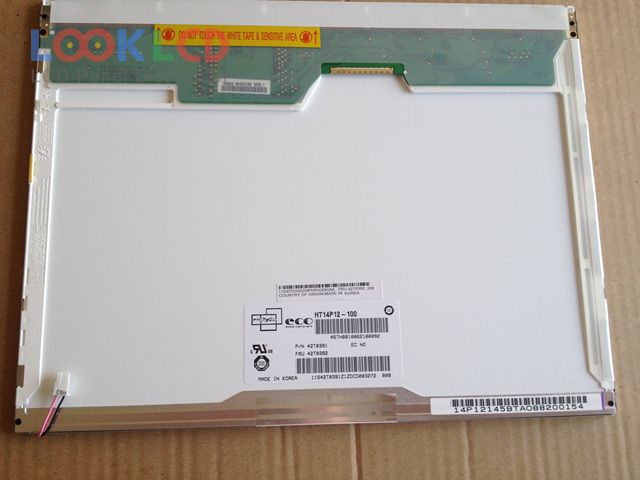

| PartNumber | HT14P12-100 |
| Brand | HYDIS |
| Size | 14.1 |
| Application | NBPC |
| Resolution | 1400(RGB)×1050 , SXGA+ |
| Composition | LCM |
| Brightness | 150 cd/m² (Typ.) |
| CR | 200:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | BOE HYDIS |
| Panel Model | HT14P12-100 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 285.6×214.2 mm |
| Outline | 299×228×5.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | |
| Contrast Ratio | 200:1 (Min.) |
| Display Colors | 262K (6-bit) |
| Response Time | 25/25 (Max.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
