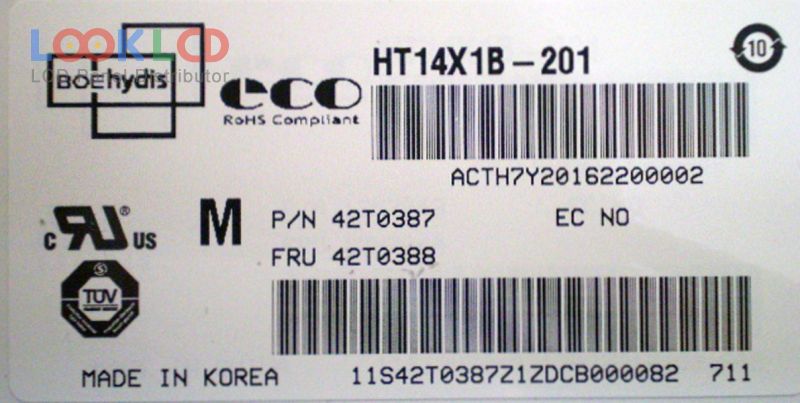

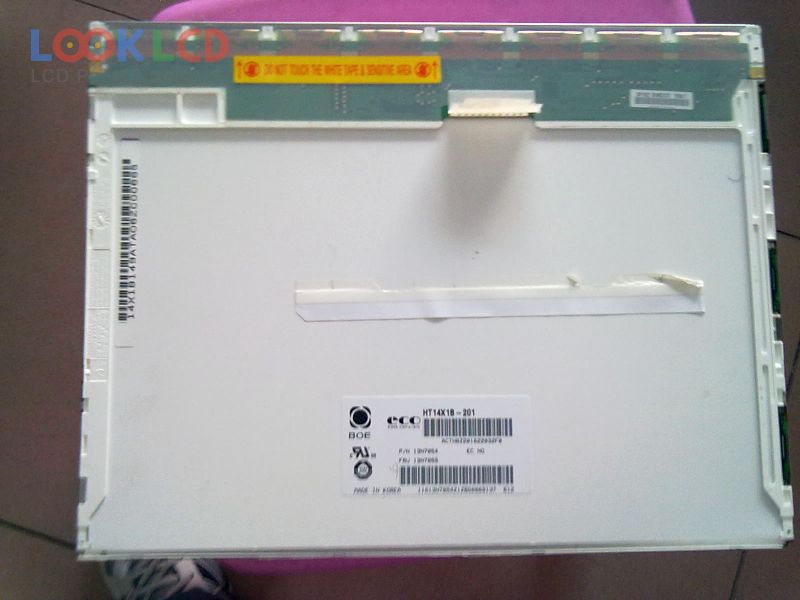

| PartNumber | HT14X1B-201 |
| Brand | HYDIS |
| Size | 14.1 |
| Application | NBPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 150 cd/m² (Typ.) |
| CR | 200:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | BOE HYDIS |
| Panel Model | HT14X1B-201 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 285.696×214.272 mm |
| Outline | 299×228×5.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | |
| Contrast Ratio | 200:1 (Min.) |
| Display Colors | 262K (6-bit) |
| Response Time | 25/25 (Max.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| B141XG09 V0 | AUO | 14.1 | 1024×768 |
| B141XN01 V0 | AUO | 14.1 | 1024×768 |
| HT14X12-101 | HYDIS | 14.1 | 1024×768 |
| HT14X13-101 | HYDIS | 14.1 | 1024×768 |
| HT14X13-102 | HYDIS | 14.1 | 1024×768 |
| HT14X14-101 | HYDIS | 14.0 | 1024×768 |
| HT14X1B-201 | HYDIS | 14.1 | 1024×768 |
| LP141WX5-TLP2 | LG Display | 14.1 | 1280×800 |
| LTN141P4-L02 | Samsung | 14.1 | 1400×1050 |
| BT156GW02 V.0 | Innolux | 15.6 | 1366×768 |
| CLAA141WB11 | CPT | 14.1 | 1280×800 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| LP150X09-B2K3 | LG Display | 15.0 | 1024×768 |
| LP154W01-TLAE | LG Display | 15.4 | 1280×800 |
| LP156WF1-TLB2 | LG Display | 15.6 | 1920×1080 |
| LP201WE1-TLA1 | LG Display | 20.1 | 1680×1050 |
| LTD104EA5F | TOSHIBA | 10.4 | 1024×768 |
| LTN141P4-L02 | Samsung | 14.1 | 1400×1050 |
| TX38D88VC1GAA | KOE | 15.0 | 1024×768 |
