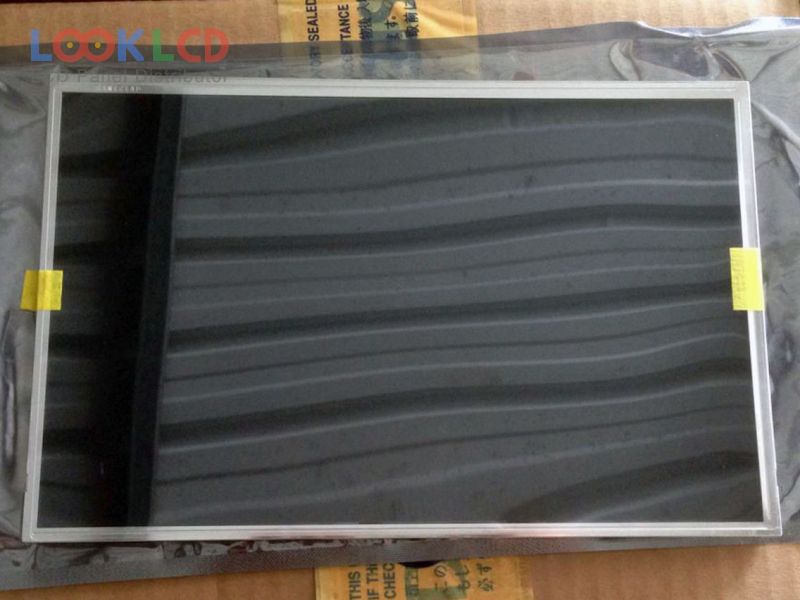

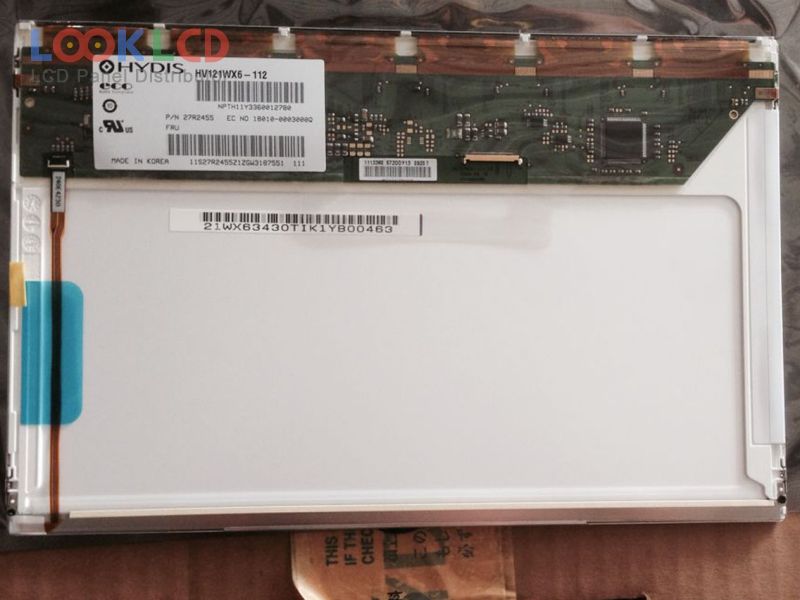

| PartNumber | HV121WX6-112 |
| Brand | HYDIS |
| Size | 12.1 |
| Application | PAD |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | HYDIS |
| Panel Model | HV121WX6-112 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | AFFS, Normally Black, Transmissive |
| Active Area | 261.12×163.2 mm |
| Outline | 276.8×180×6.6 mm |
| Surface | |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 12S4PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
