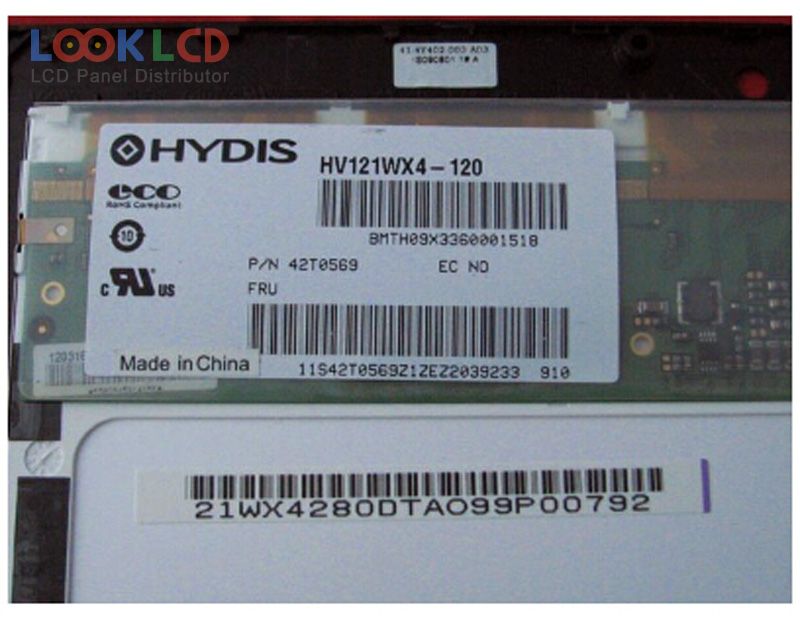

| PartNumber | HV121WX4-120 |
| Brand | HYDIS |
| Size | 12.1 |
| Application | PAD |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | BOE HYDIS |
| Panel Model | HV121WX4-120 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | AFFS, Normally Black, Transmissive |
| Active Area | 261.12×163.2 mm |
| Outline | 275.8×178×6.7 mm |
| Surface | Antireflection |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 28/28 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |

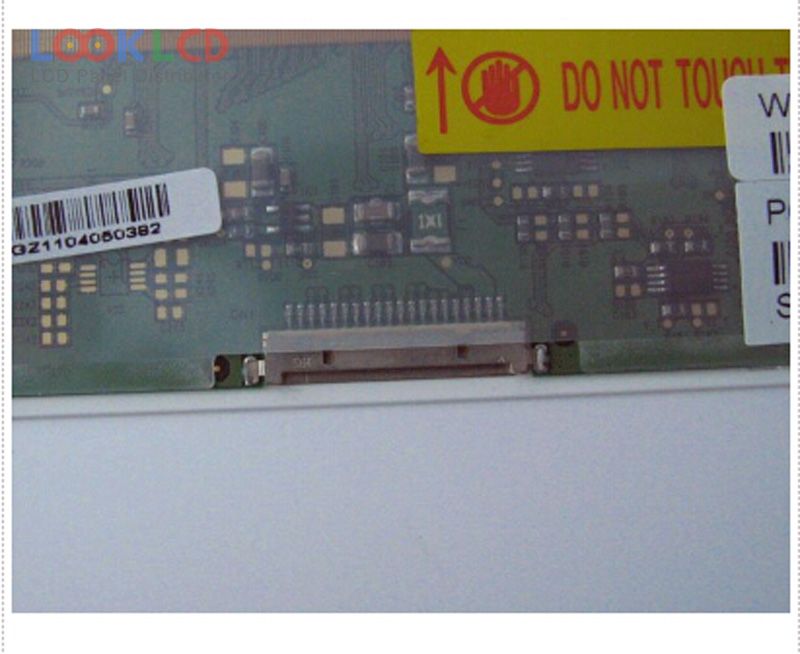

| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
| HV121WX4-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-121 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| B070ATN02.0 | AUO | 7.0 | 600×1024 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| EE090NA-01C | Innolux | 9.0 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| LSL080AL02-B01 | Samsung | 8.0 | 800×1280 |
| LTL070NL02-W02 | Samsung | 7.0 | 1024×600 |
| N070ICE-G02 Rev.A2 | Innolux | 7.0 | 800×1280 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| TPF0702001N | JDI | 7.0 | 1200×1920 |
