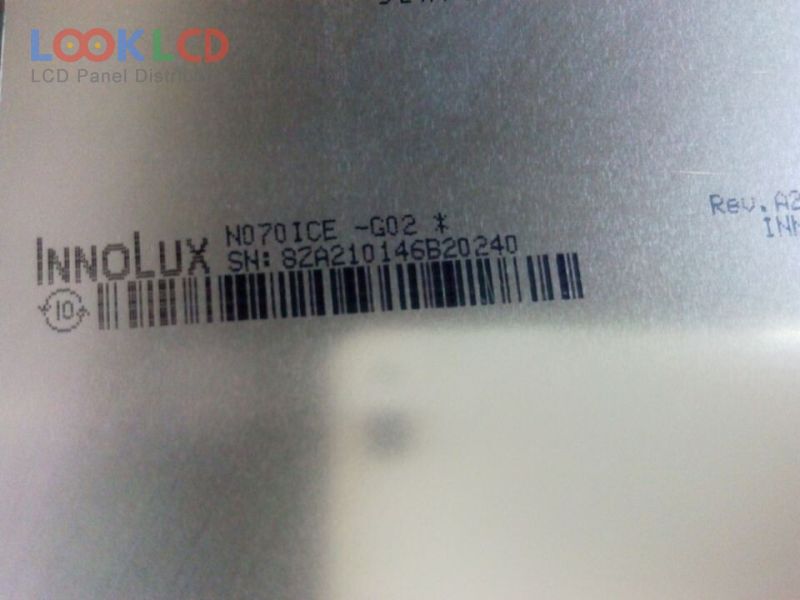

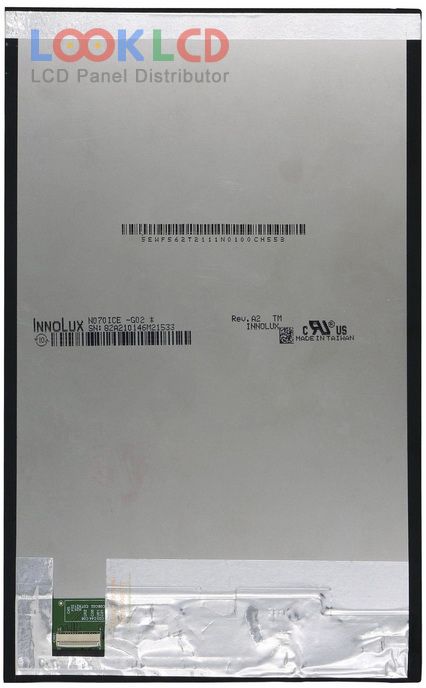

| PartNumber | N070ICE-G02 Rev.A2 |
| Brand | Innolux |
| Size | 7.0 |
| Application | PAD |
| Resolution | 800(RGB)×1280 , WXGA |
| Composition | LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | INNOLUX |
| Panel Model | N070ICE-G02 Rev.A2 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | AAS, Normally Black, Transmissive |
| Active Area | 94.2×150.72 mm |
| Outline | 103.5×162.22×4.51 mm |
| Surface | |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193160% |
| Response Time | 11/9 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 31 pins |
| Input Voltage | 1.8/3.3V (Typ.)(VDDI/VCI) |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| CLAA070ND02 | CPT | 7.0 | 1024×600 |
| CLAA070ND22CW | CPT | 7.0 | 1024×600 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| LA070WV6-SL01 | LG Display | 7.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| N070ICE-G02 Rev.A2 | Innolux | 7.0 | 800×1280 |
| N070ICE-G02 Rev.C3 | Innolux | 7.0 | 800×1280 |
| N070ICE-GB1 | Innolux | 7.0 | 800×1280 |
| N070ICE-GB2 | Innolux | 7.0 | 800×1280 |
| HQ097QX1-IPS | Other | 9.7 | 2048×1536 |
| LP116WH4-SLN1 | LG Display | 11.6 | 1366×768 |
| LPM070W425D | JDI | 7.0 | 1200×1920 |
| LTL070NL01-801 | Samsung | 7.0 | 1024×600 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| LTL089CL02-W02 | Samsung | 8.9 | 1920×1200 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-801 | Samsung | 10.1 | 1280×800 |
| N080ICE-GB0 Rev.A1 | Innolux | 8.0 | 800×1280 |
| TFTMD089030 | JDI | 8.9 | 2560×1600 |
