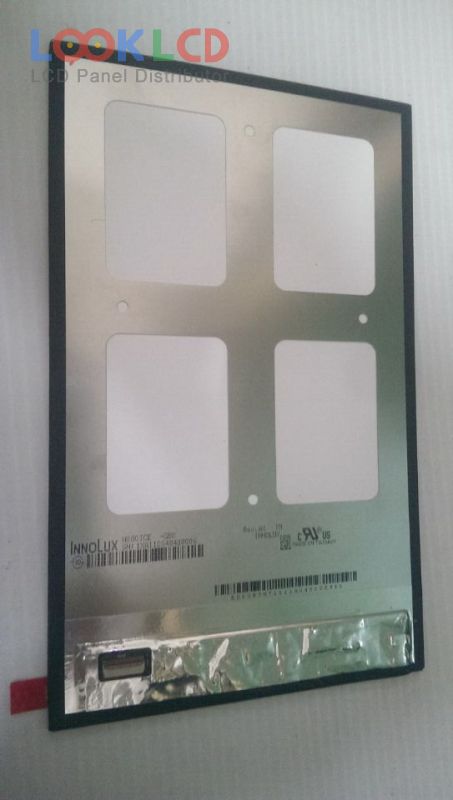

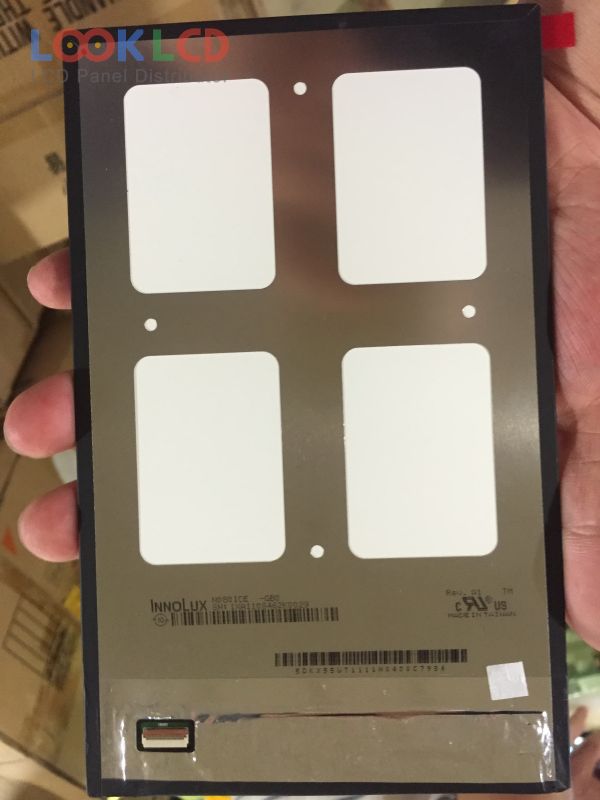

| PartNumber | N080ICE-GB0 Rev.A1 |
| Brand | Innolux |
| Size | 8.0 |
| Application | PAD |
| Resolution | 800(RGB)×1280 , WXGA |
| Composition | LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | INNOLUX |
| Panel Model | N080ICE-GB0 Rev.A1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.0 inch |
| Display Mode | AAS, Normally Black, Transmissive |
| Active Area | 107.64×172.224 mm |
| Outline | 114.58×184.09×4.06 mm |
| Surface | Hard coating, Antireflection |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193160% |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 stringsWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 31 pins |
| Input Voltage | 1.8/3.3V (Typ.)(VDDI/VCI) |
