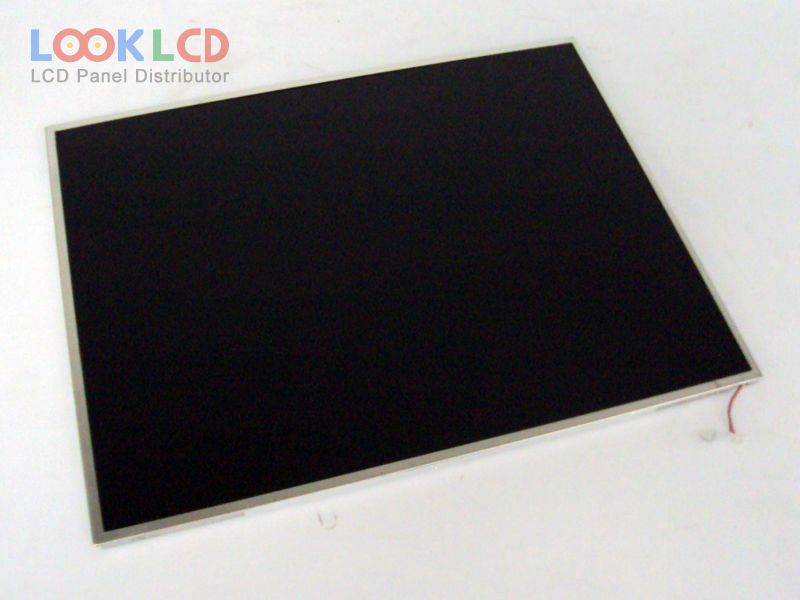

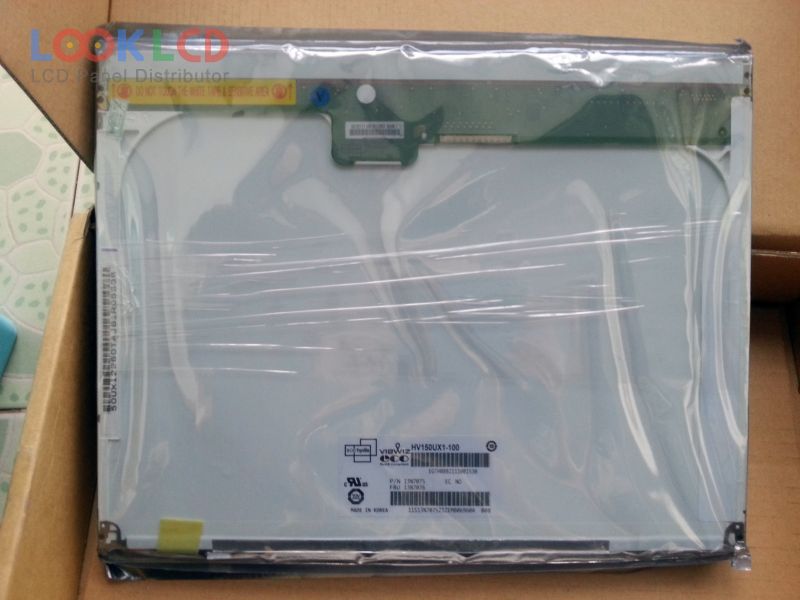

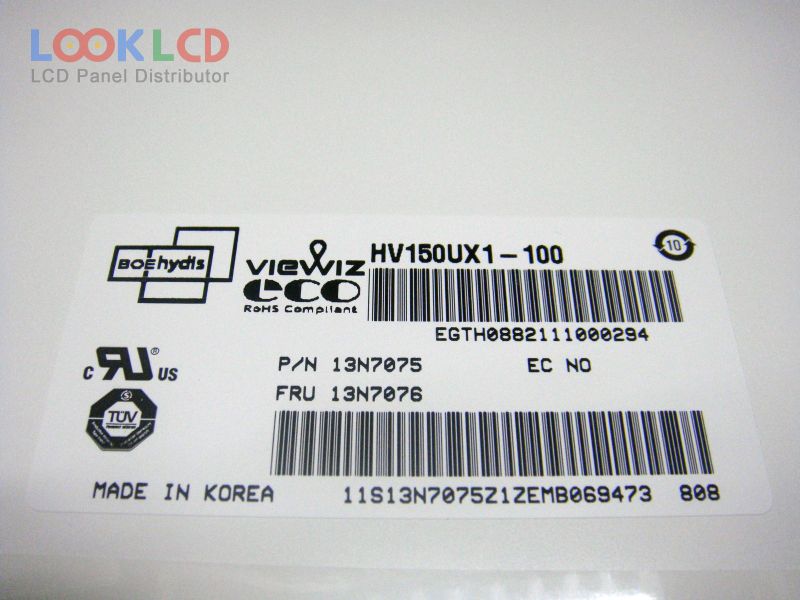

| PartNumber | HV150UX1-100 |
| Brand | HYDIS |
| Size | 15.0 |
| Application | NBPC |
| Resolution | 1600(RGB)×1200 , UXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | BOE HYDIS |
| Panel Model | HV150UX1-100 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.0 inch |
| Display Mode | FFS, Normally Black, Transmissive |
| Active Area | 304.8×228.6 mm |
| Outline | 317.3×242×6.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare (Haze 45%), Hard coating (2H), Antireflection |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥20)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
