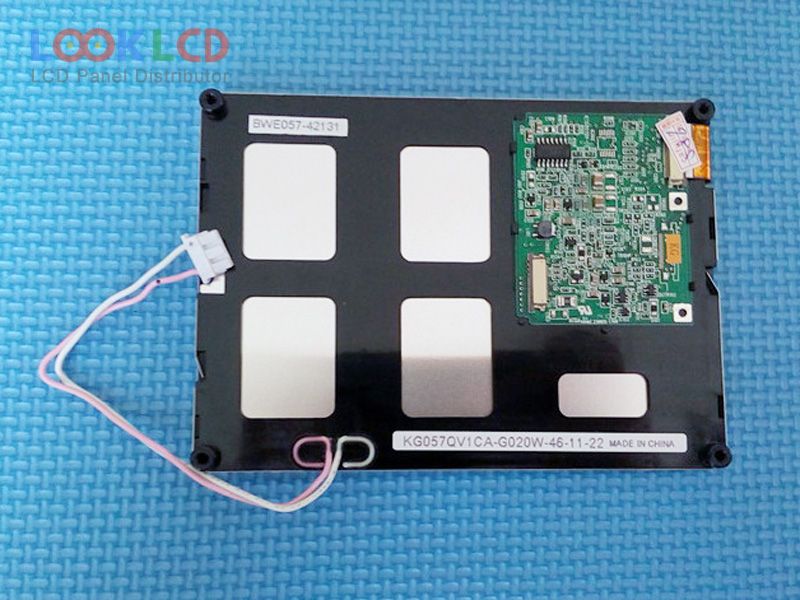

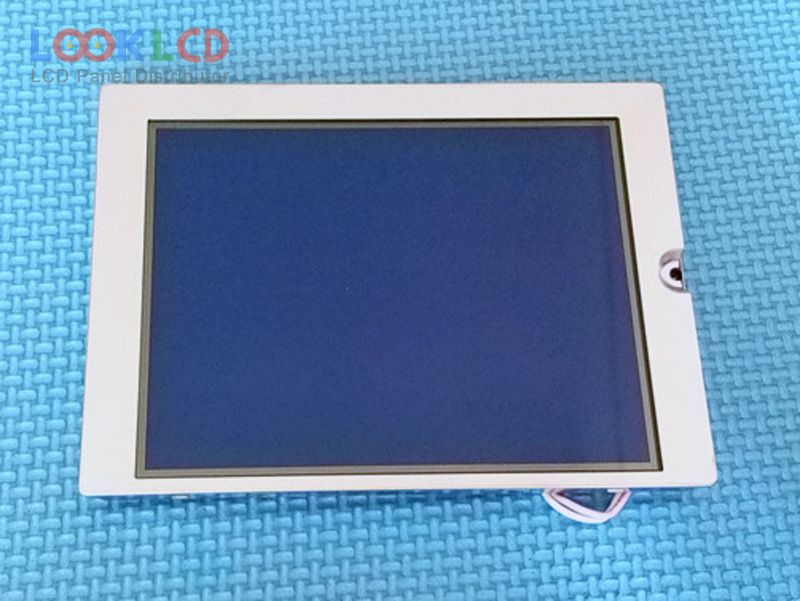

| PartNumber | KG057QV1CA-G020W |
| Brand | Kyocera |
| Size | 5.7 |
| Application | IA |
| Resolution | 320×240 , QVGA |
| Composition | LCM |
| Brightness | 260 cd/m² (Typ.) |
| CR | 4:1 |
| Colors | Monochrome |
| Backlight | CCFL |
| Interface | Parallel Data |
| Panel Brand | Kyocera |
| Panel Model | KG057QV1CA-G020W |
| Panel Type | STN-LCD , LCM |
| Panel Size | 5.7 inch |
| Display Mode | STN, Blue mode (Negative), Transmissive |
| Active Area | 115.18×86.38 mm |
| Outline | 144×104.8×13.2 mm |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 4:1 (Typ.) |
| Display Colors | Monochrome |
| Response Time | 380/120 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥2)(L/R/U/D) |
| Frequency | 75Hz |
| Lamp Type | 1 pcsCCFLOptional |
| Signal Interface | Parallel Data (4-bit), 20 pins |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
